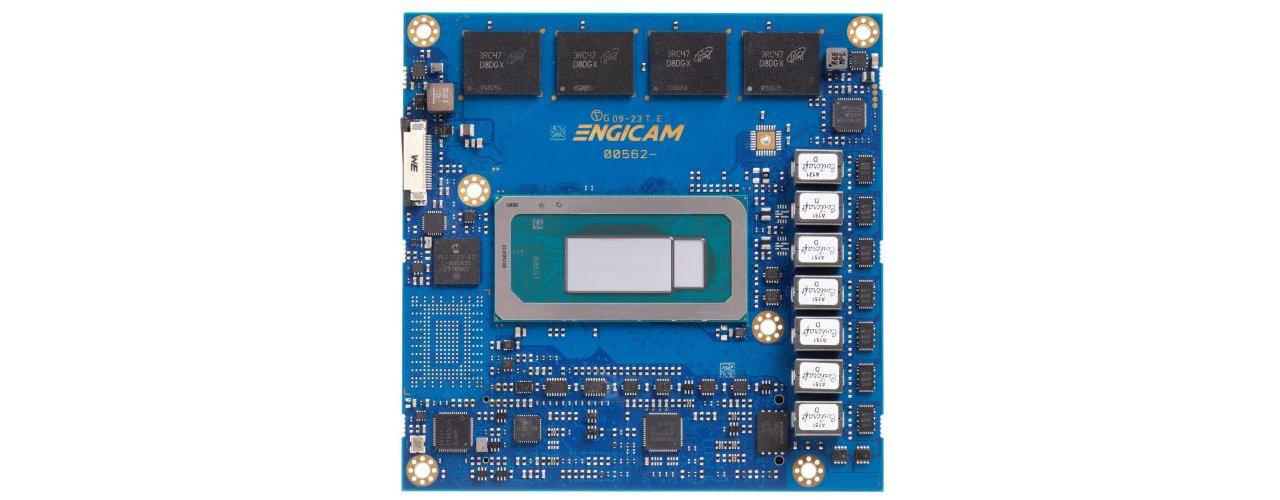

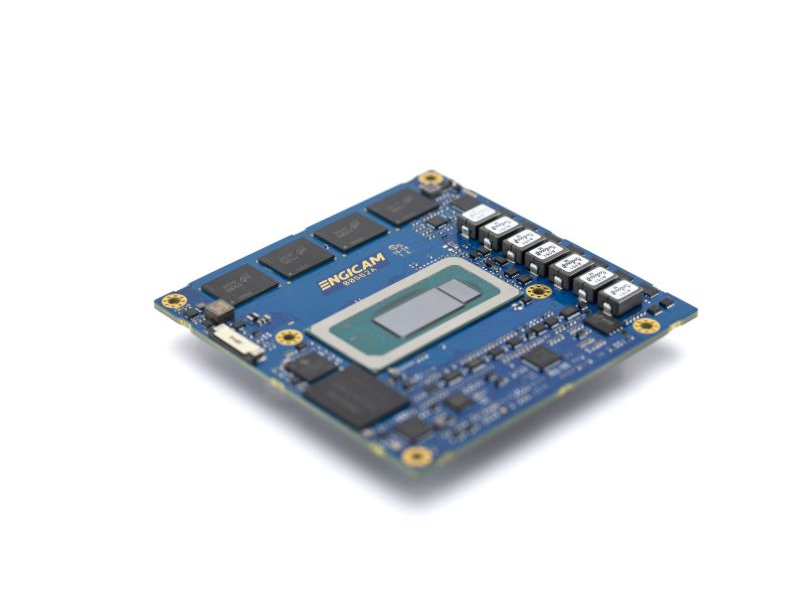

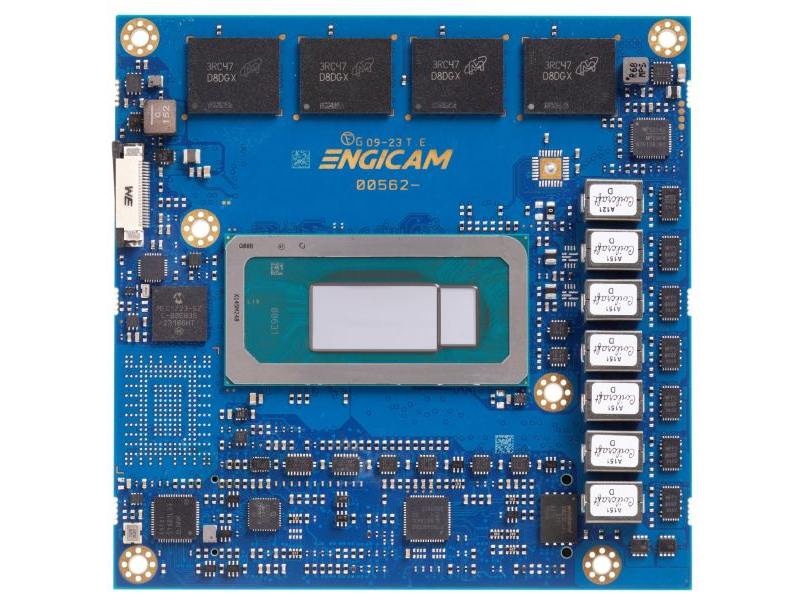

Intel®  ALDER LAKE™ Standard COM Express® compact type 6 for IoT applications

The new Engicam COMe module, based on Intel® processors ALDER LAKE™, enables IoT applications with up to 1.36x times faster in single-thread performance  and up to 1.35x times faster in multi-thread performance  vs. the previous generation processors.

CPU

  • Intel®Alder Lake
  • Manufacturer: Intel
  • GPU

Cores

  • x86
  • i7-12800HE i5-12600HE i3-12300HE i7-1270PE i5-1250PE i3-1220PE i7-1265UE i5-1245UE i3-1215UE Celeron 7305E

Memory

  • LPDDR5@5200MTs
  • 0B up to 64GB

Graphics

  • Intel® Iris Xe Graphics architecture Intel® Deep Learning Boost (VNNI) DirectX 12.1, OpenGL 3.0, IPU 6.0

Video Interfaces

  • DP, HDMI, LVDS

Video Processing Unit Capabilities

  • HEVC/H.265, AVC/H.264, VP9, JPEG/MJPEG dec HEVC/H.265, AVC/H.264, VP9, JPEG enc

Mass Storage

  • Starting from 64 NVMe PCIe
  • SATA

Networking

  • 1x 2.5 Gb Ethernet

PCIe

  • 8

Audio

  • HDA Interface

Peripheral Interfaces

  • SM Bus, I2C, LPC/eSPI (option), UART, GPIOs, CSI connector, JTAG EC connector

Power Supply

  • +8.5 to 20 V

Operating System

  • Linux
  • Windows

Operating Temperature

  • 0° up to 70°

Dimensions

  • Compact Type 6
  • 95 x 95 mm

Product availability

  • 2034
