i.MX 6ULL based Micro SOM

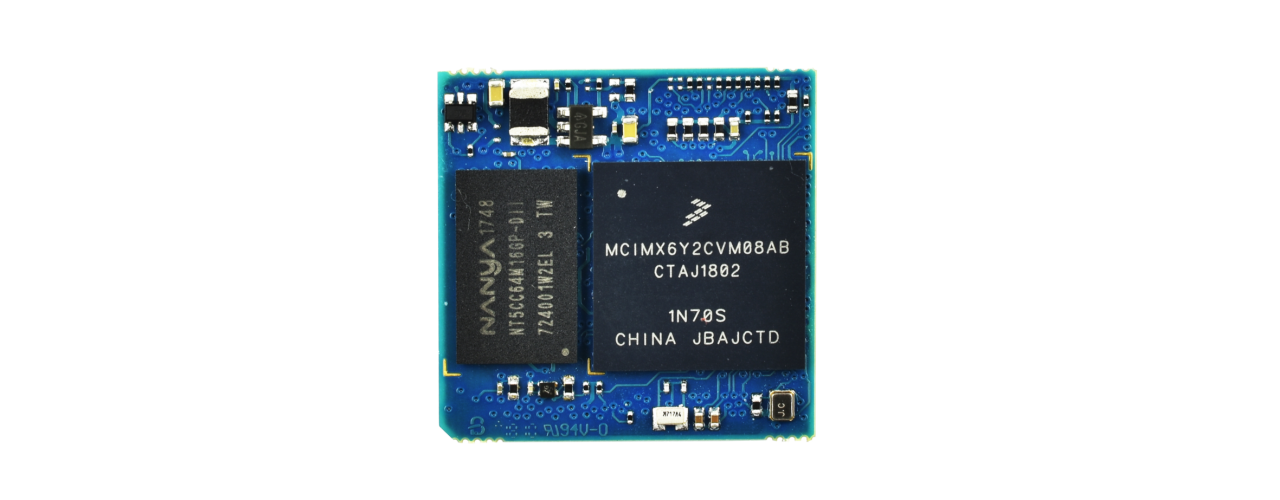

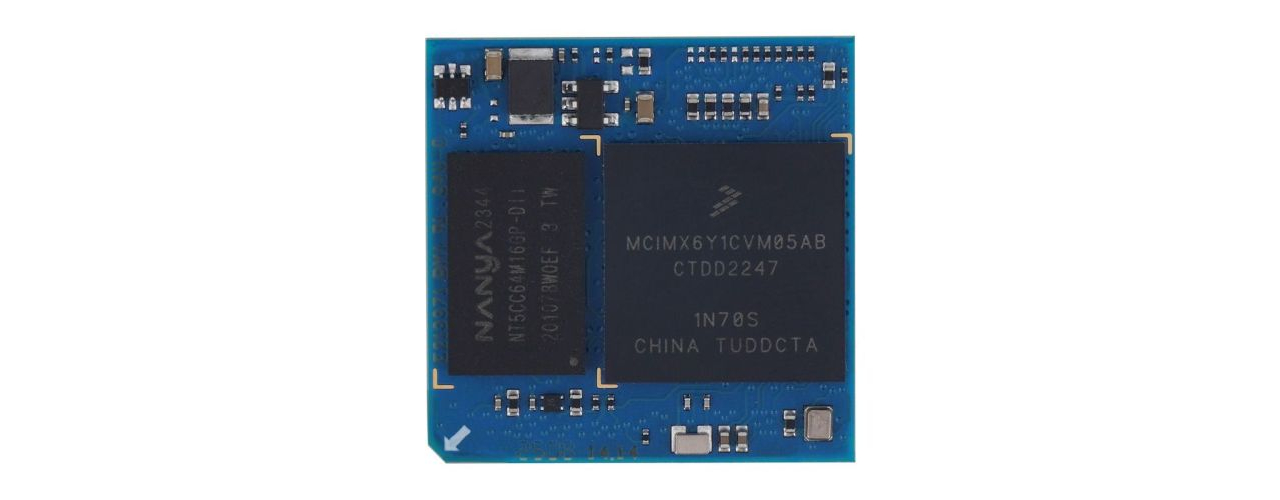

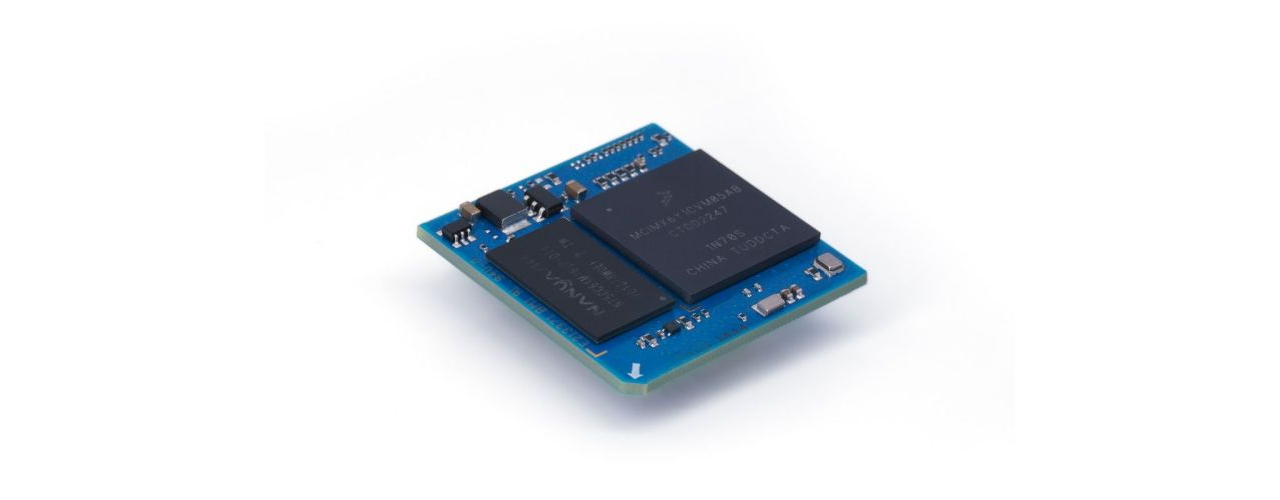

The MicroGEA Module is the smallest module on the market based on i.MX 6ULL; everything is included in a very amazing size of 25 x 25 mm , with a height of 3.5 mm. The new item of the Micro SOM family comes with the low cost and power efficient processor NXP i.MX 6ULL and provides e-paper driving capability ( EPD up to 2048x1536), LCD with resolution up to WXGA (1366x768) and many other peripherals.

CPU

  • NXP® i.MX6ULL
  • Manifacturer: NXP

Cores

  • ARM
  • Single-Core Cortex-A7@ up to 900MHz
  • 1 cores

Memory

  • DDR3L 800
  • 128MB up to 1GB

Graphics

  • Electrophoretic Display (EPD) controller Pixel processing pipeline (PXP) to support 2D image processing including color-space conversion, scaling, alpha-blending, and rotation.

Video Interfaces

  • Parallel RGB

Video Processing Unit Capabilities

  • Up to WXGA (1366x768) for LCD; Up to 2048x1536 for EPD

Mass Storage

  • Nand Flash
  • NAND

Networking

  • 1x LAN 100

USB

  • 1x OTG
  • 2x USB2

PCIe

  • 0 lanes

Audio

  • I2S interface

Peripheral Interfaces

  • Up to 3 I2C Up to 3 SPI Up to 8 PWM Up to 7 UART Up to 2 CAN Bus Up to 2 SDIO interfaces Up to 2 ADC

Power Supply

  • single 3.3V

Operating System

  • Linux

Development System

  • Debian,Yocto

Operating Temperature

  • -40° up to 85°

Dimensions

  • MicroGEA
  • 25 x 25 mm

Product availability

  • 2031
