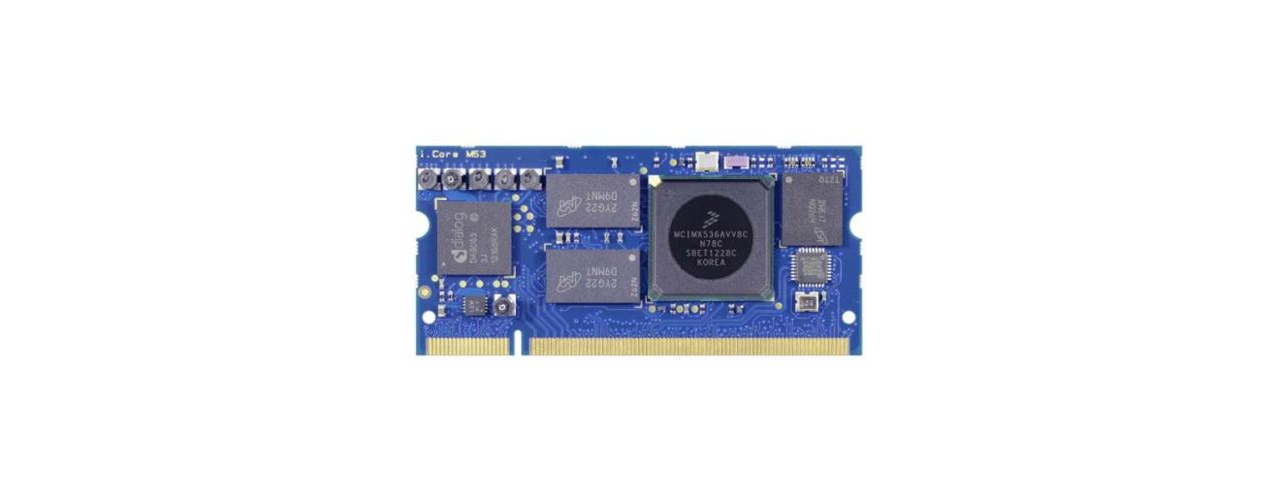

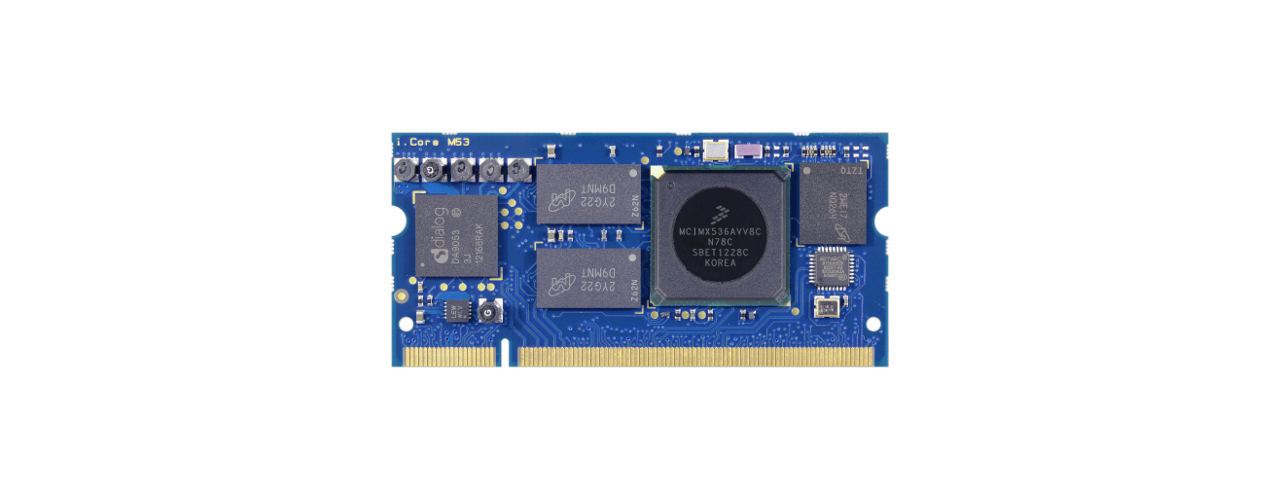

i.MX53 based EDIMM SOM

i.Core MX53 based on NXP™ ARM Cortex™-A8 core processor, offers both performance and power to meet the demands of high-end.

Based on NXP™ i.MX53 multimedia processor. The i.MX53 family of processors represents NXP's next generation of advanced multimedia and power-efficient implementation of the ARM Cortex™-A8 core with core processing speeds up to 1 GHz. It is optimized for both performance and power to meet the demands of high-end, advanced applications. Ideal for a broad range of applications in the consumer, automotive, medical and industrial markets, the i.MX53 includes an integrated display controller, full HD capability, enhanced graphics, and connectivity features.

  • NXP™ i.MX536 application processor
  • Core: Cortex™-A8
  • Frequency: 800MHz
  • DRAM WIDTH: 32bit
  • RAM type: DDR3-800
  • RAM size: 256/512MB
  • FLASH type: NAND SLC
  • FLASH size: 256MB
  • MAX LCD resolution: HD
  • Simultaneous LCDs: 2
  • Parallel LCD: 1x 18bit parallel LCD port
  • LVDS: 2
  • HDMI: No
  • CSI input: 8 bit
  • HW ACC: 2D
  • SATA: 1
  • External bus I/F: Yes
  • SDIO: 2x 4 bit
  • CAN: 2
  • UART: Up to 5
  • I2C: Up to 2
  • I2S: Up to 2
  • SPI: Up to 3
  • USB: 1x OTG, 1x HOST
  • PCI express: No
  • ADC: No
  • Video ADC: No
  • Ethernet: 1x 10/100 with PHY
  • Industrial temperature range
  • Status: Production


  • 0B up to 0B


  • NO

Operating System

  • Linux

Operating Temperature

  • 0° up to 0°

Product availability

  • 2020

Fact Sheet

Software manual

Hardware manual



  • BSP (This content is available for authorized users only, to open link)
