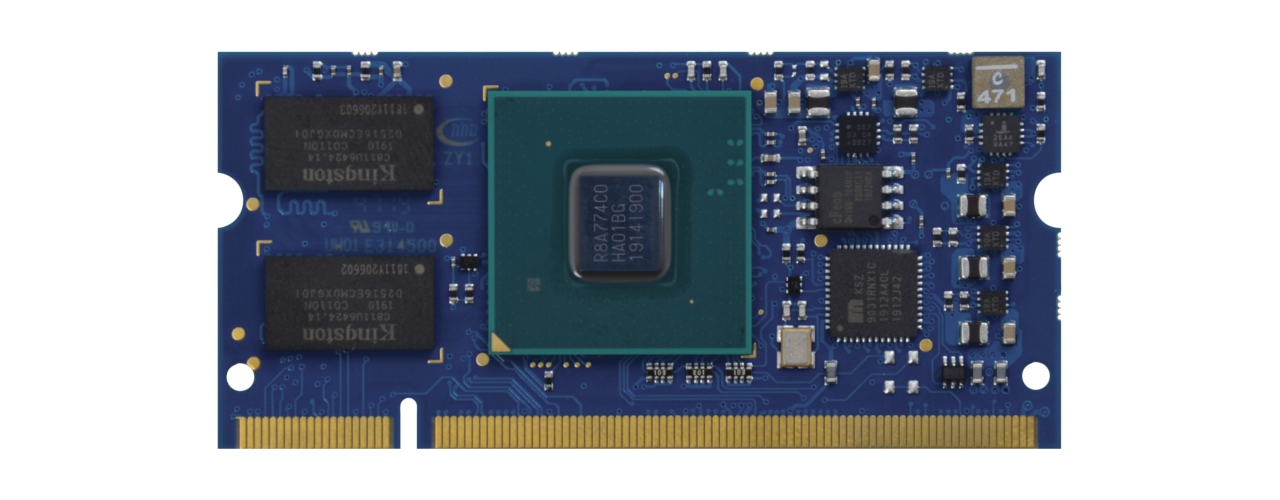

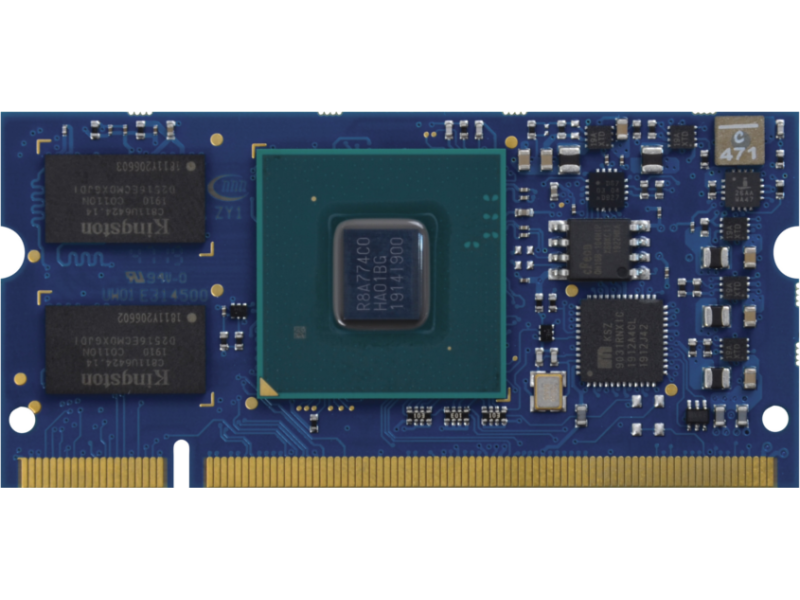

EDIMM SOM based on Renesas® RZ/G2E

SAMPLES AVAILABLE



i.Core RZ/G2E, based on Renesas® RZ/G2E processor is suitable for low power consumption and fan-less application with high-end graphics performances

i.Core RZ/G2E equipped with a Dual-Core ARM Cortex-A53 processor offers very high performance, real-time capabilities and more. The wide range of peripherals makes this SOM suitable for many different applications.

Operating Systems

Linux
CPU
CPU : Renesas® RZ/G2E
Cores
Cores : Dual-Core ARM Cortex-A53 @ 1.2GHz L1, L2 Parity/ECC
Memory
Memory : 1 GB DDR3L
Graphics
Graphics : PowerVR GE8300 @ 600MHz Ultra HD deep color GPU Support APIs: OpenGL ES 3.1, (OpenCL 1.2 EP)
Video Interfaces
Video Interfaces : LVDS 18/24bit up to Full HD, MIPI-CSI - 2 lanes
Video Processing Unit Capabilities
Video Processing Unit Capabilities : 1080p60 HEVC (h.265, h.264/AVC) dec; 1080p60 (h.264/AVC) enc
Mass Storage
Mass Storage : eMMC 4 GB expandible
Networking
Networking : Gb Ethernet interface
USB
USB : USB OTG 2.0, USB HOST 2.0/3.0
PCIe
PCIe : PCIe 1 lanex 1 channel
Audio
Audio : I2S Interface
Peripheral Interfaces
Peripheral Interfaces : UART, I2C, CAN, SPI, SDIO/SDHC, TPM 2.0 option available, SPI ROM for boot
Power Supply
Power Supply : + 5V DC
Operative System
Operative System : Linux
Operating Temperature
Operating Temperature : Industrial and consumer qualified
Dimensions
Dimensions : 67.6 x 32.1 mm
  • i.CoreRZG2E_HW_Manual_1.0.0.pdf - 7.99M (please login to download)
  • PCN_21101.pdf - 50.17K (please login to download)

Starterkit available for development
