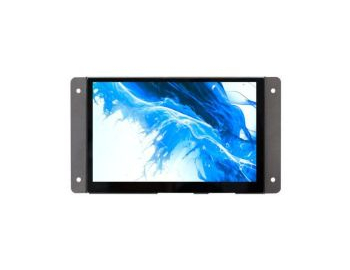

Capacitive touch 10.1" open frame standard EDIMM 2.0

The carrier+SOM approach allows a very scalable solution. Based on the new standard EDIMM 2.0, this open frame terminal can be driven by i.Core MX6 series and the new i.Core MX8 series and i.Core STM. The capacitive multi-touch panel and the Engicam Linux SDK allow a really ready-to-use way to develop a user-friendly graphic user interface.  Where a standard interface is required, C.Touch IoT open frame family is fully supported by Android BSP.  The frameless touch panel system is very easy to be integrated into the final housing. WiFi and BT available.

Operating Systems

Linux
  •  CPU modules compliant
  • TFT 10.1" industrial, 1280x800 resolution
  • LED backlight, brightness 350 Cd/m2
  • 1x Ethernet 10/100
  • WiFi + BT
  • 1x microSD
  • 1x audio output
  • 1x USB Type A
  • 1x USB OTG device
  • 1x CAN bus
  • 1x RS485
  • 1x RS232
  • 1x RS232 for OS Console
  • 1x expansion connector (I2C, SDIO or SPI, up to 10 GPIO) 2 x USB (Option)
  • 1x LCD connector to drive dual-channel displays (Option)



Hardware manual

  • Openframe_CTOUCH IOT USR Manual 106.pdf - 6.86M (please login to download)

PCN

  • PCN_2108-02.pdf - 127.08K (please login to download)
  • PCN_2108-03.pdf - 127.08K (please login to download)
  • PCN_2108-04.pdf - 668.30K (please login to download)
