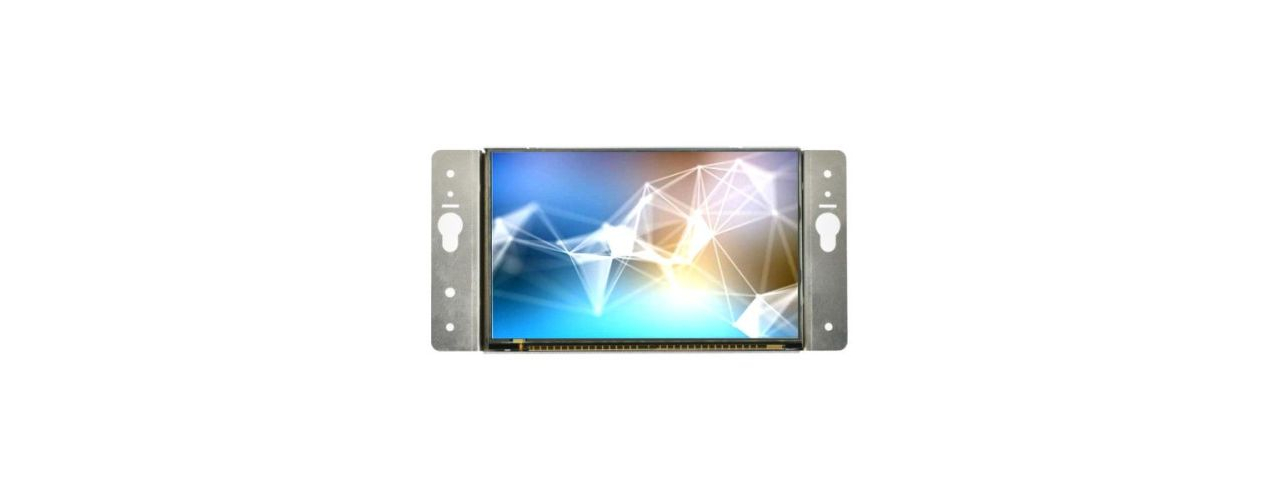

Capacitive touch 7" open frame

The carrier+SOM approach allows a very scalable solution. Based on standard EDIMM modules, this open frame terminal can be driven by i.Core M6 Solo for the low-cost applications and by i.Core M6 Dual or Quad where a more powerful processor is required. The capacitive multi-touch panel and the Engicam Linux SDK allow a really ready-to-use way to develop user-friendly graphic user interfaces. Where a standard interface is required, C.Touch open frame family is fully supported by Android BSP for i.Core M6 module. The frameless touch panel system is very easy to be integrated into the final housing. The boxed version is available as an option.

Operating Systems

Linux Android

  • TFT 7" industrial, 800x480 resolution
  • LED backlight, brightness 300 Cd/m2
  • 5 point multitouch CTP
  • 15 to 30 Vdc single power supply
  • 1x Ethernet 10/100T
  • 1x audio output
  • 1x uSD, 1x USB
  • 1x RS232, 1 x RS485
  • 1x CAN bus
  • 1x RTC
  • 1x expansion connectors (I2C, SDIO or SPI, up to 10 GPIO)
  •  CPU modules compliant
  • Boxed version available
  • Front panel option available
