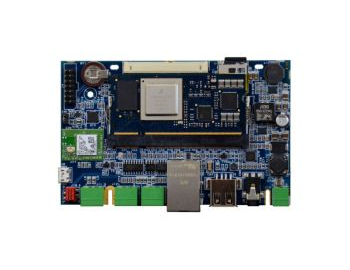

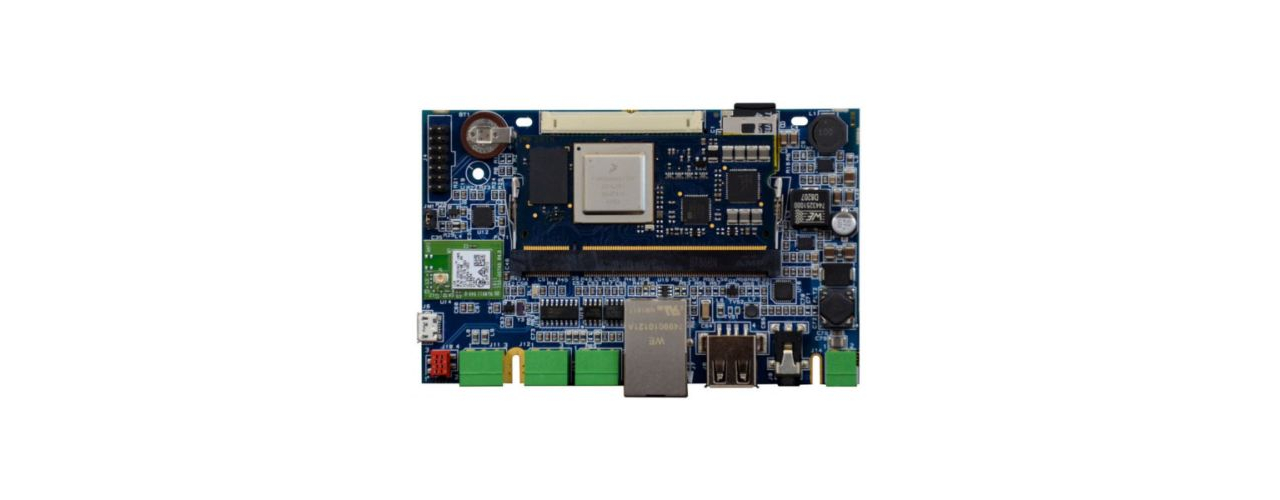

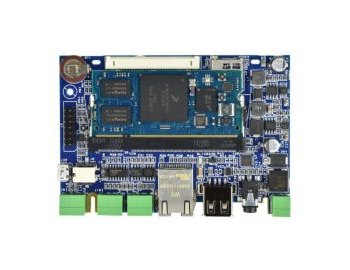

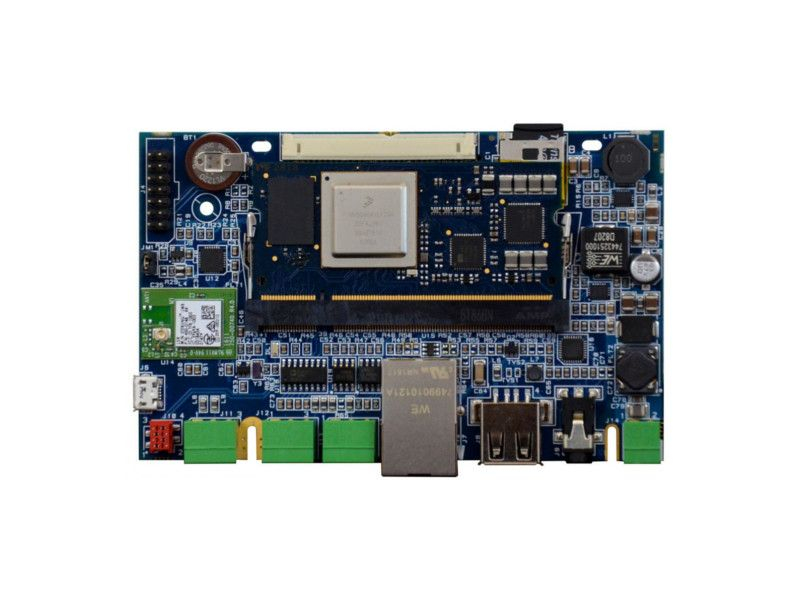

General purpose carrier board with capacitive touch interface, EDIMM 2.0 compliant.

Operating Systems

Linux Android



  • EDIMM 2.0 CPU modules compliant
  • Industrial temperature range
  • Wide 15 to 30 Vdc single power supply
  • 1x Ethernet 10/100
  • WiFi + BT
  • 1x microSD
  • 1x audio output
  • 1x USB Type A
  • 1x USB OTG device
  • 1x CAN bus
  • 1x RS485
  • 1x RS232
  • 1x RS232 for OS Console
  • 1x expansion connector (I2C, SDIO or SPI, up to 10 GPIO) 2 x USB (Option)
  • 1x General purpose LCD connector: 1x 18 or 24 bit single channel LVDS,  1x USB, 1 x I2C for CTP i/f,  1x PWM for backlight control,  Power supply for LCD (+3V3, +5V, 12V)
  • 1x LCD connector to drive dual channel displays (Option)

Accessories

Hardware manual

  • Openframe_C.TOUCH_IOT_USR_Manual_1.0.7.pdf - 3.67M (please login to download)

PCN

  • PCN_2108-02.pdf - 127.08K (please login to download)
  • PCN_2108-04.pdf - 668.30K (please login to download)
  • PCN_2210-01.pdf - 74.20K (please login to download)
