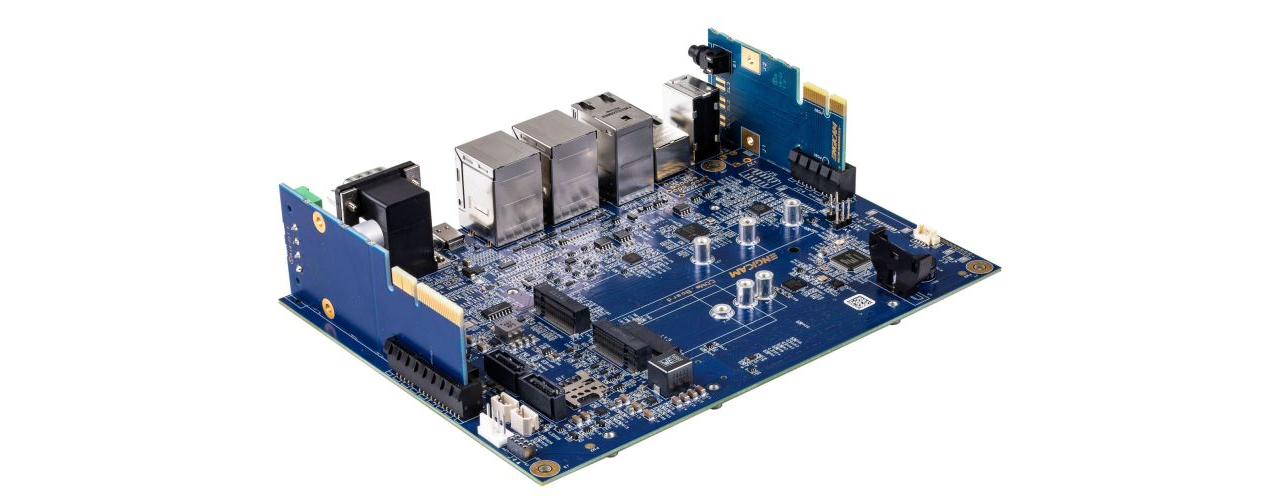

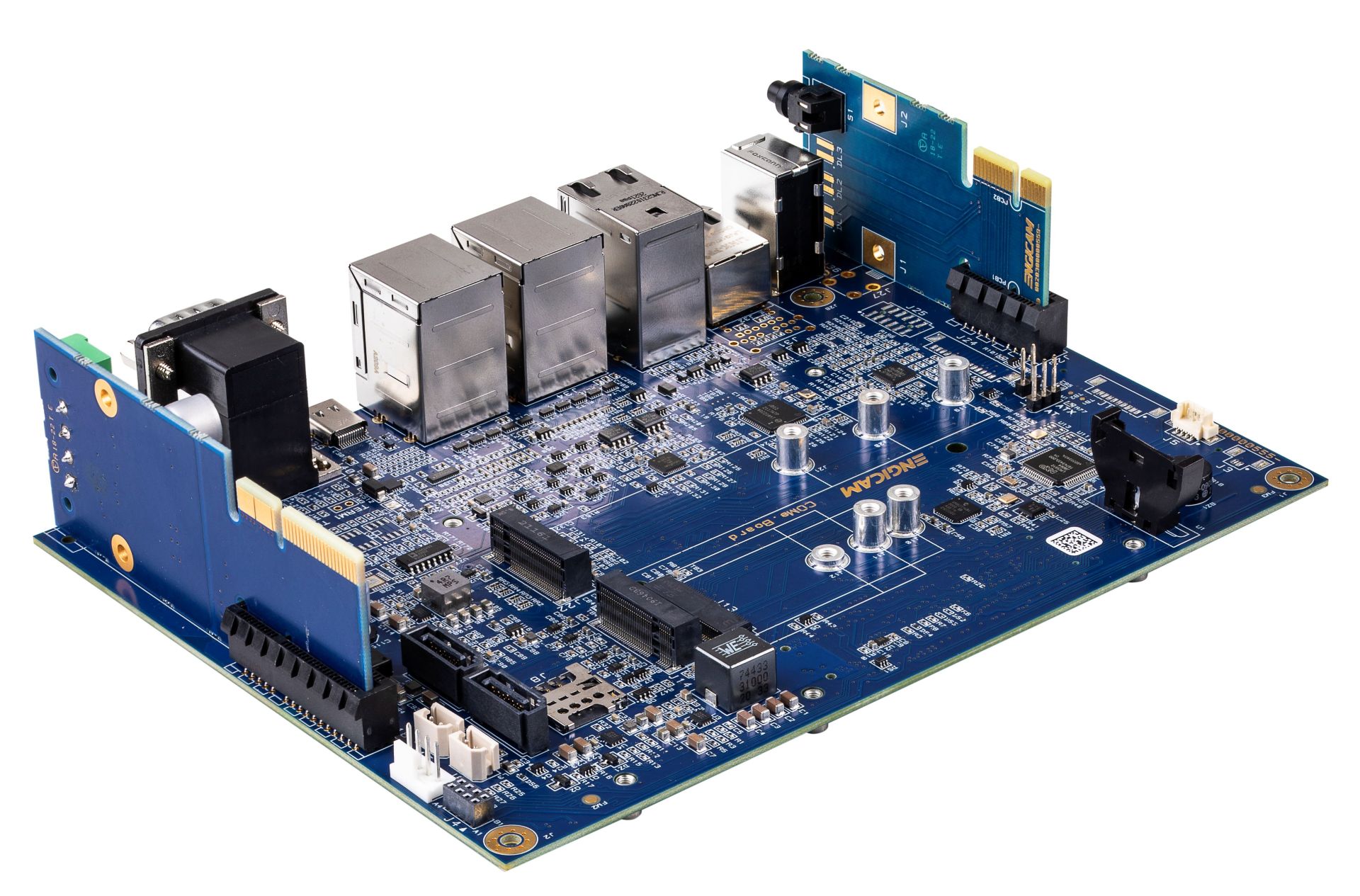

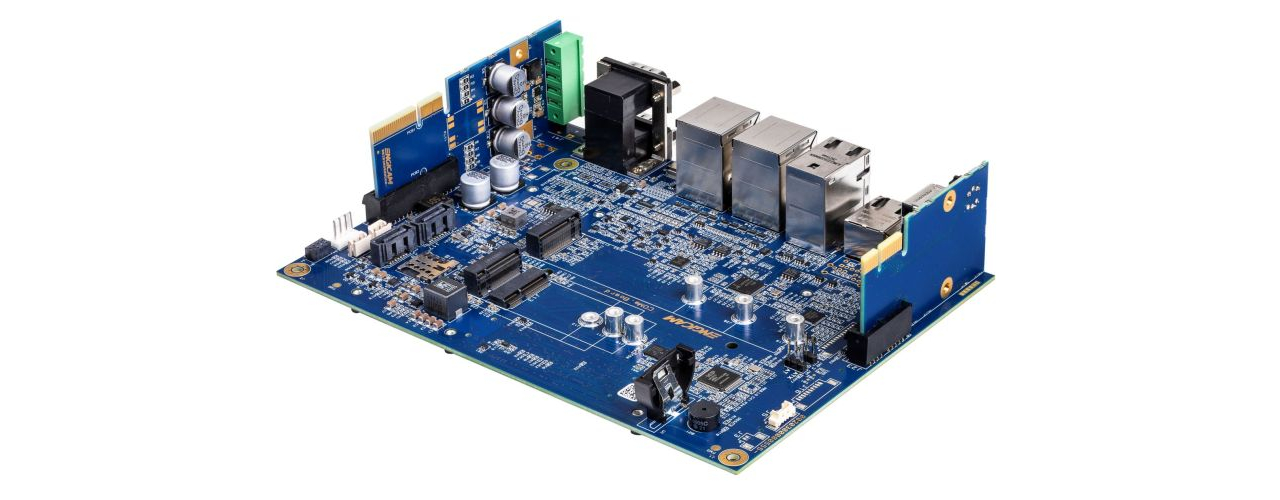

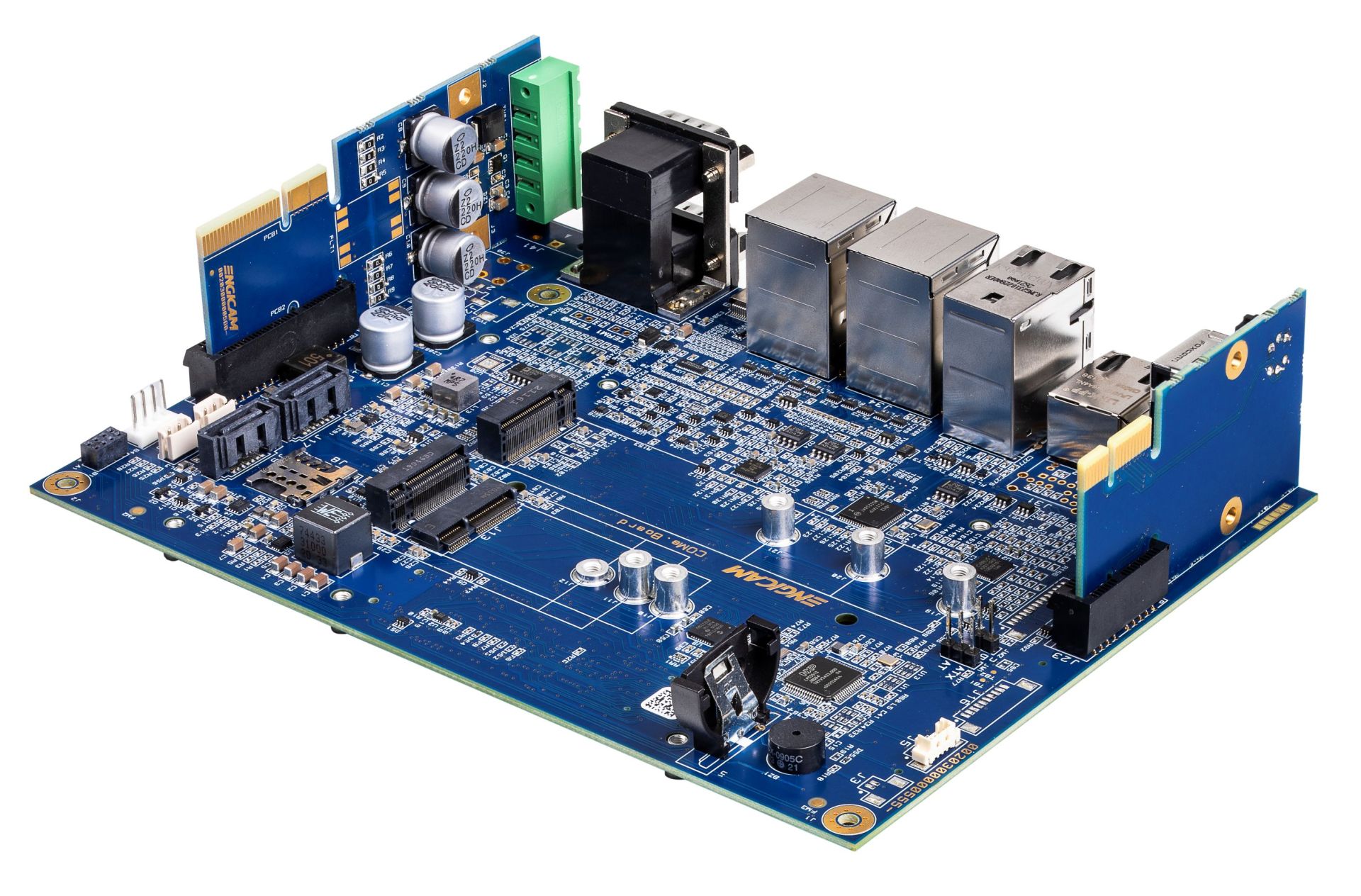

New Engicam COMe Carrier Board compliant with standard COM Express type 6 and basic COM Express type 10

New Engicam COMe Carrier Board fully compliant with standard COM Express type 6 compact and type 10 modules with several peripherals for networking, multimedia interfaces, and industrial use.

Operating Systems

Linux Windows

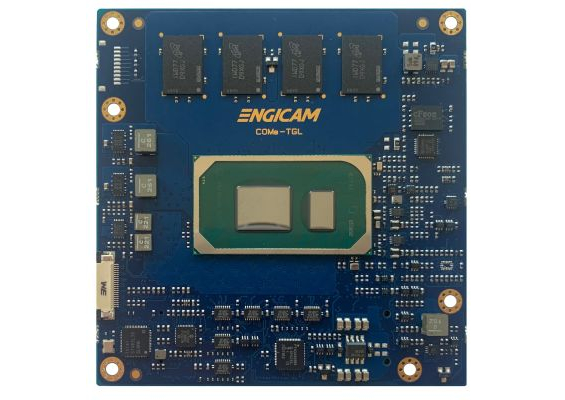

  • Tiger Lake series
  • Industrial temperature range

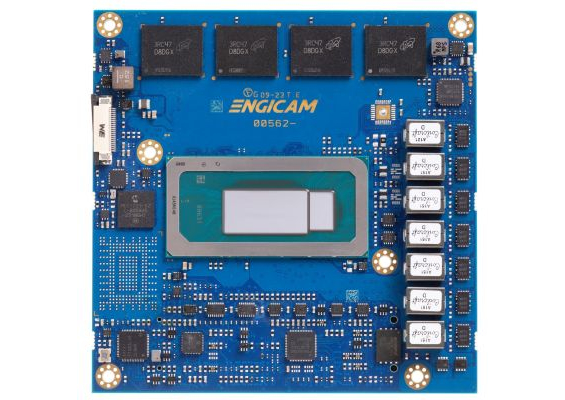

  • Alder Lake series
  • +20 to 30 Vdc single power supply

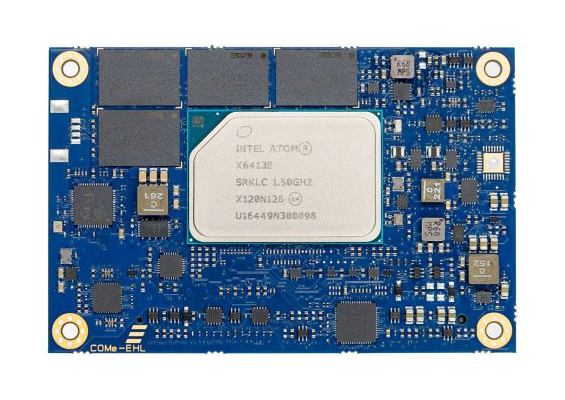

  • Elkhart Lake series
  • 2 x  Ethernet interface (1x up to 2.5Gb)
  • 2 x SATA slot
  • WLAN/BT M.2 Key E
  • SSD M.2 Key M slot
  • WWAN M.2 Key B with microSIM slot
  • SSD M.2 Key B slot
  • Up to 6 USB HOST
  • Industrial Bus Interfaces ( CANBus, RS232, RS485)
  • HDMI
  • Display Port (Type 6C only)

Fact Sheet

Hardware manual
