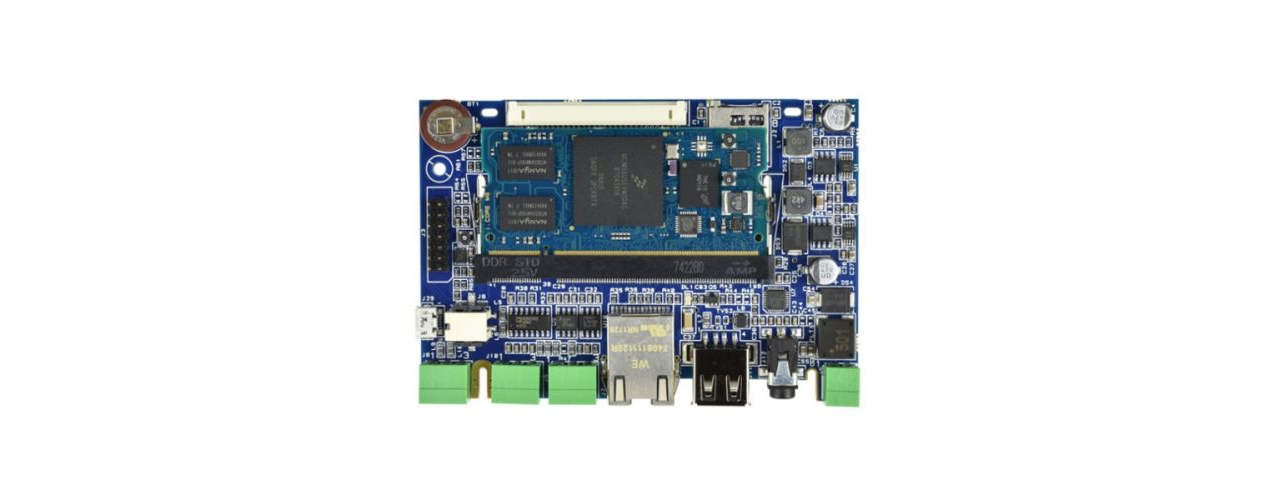

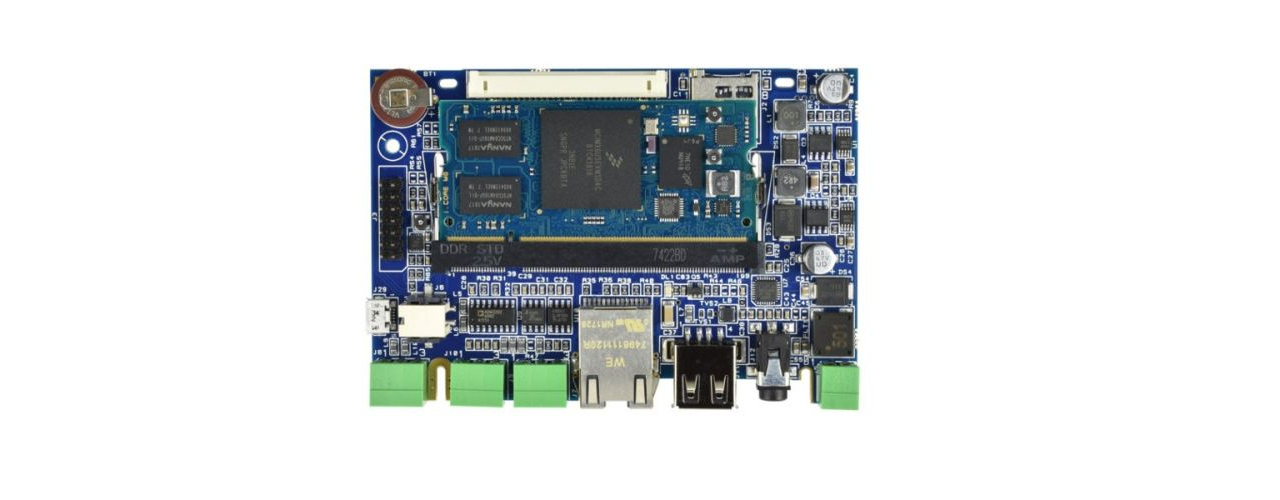

General purpose carrier board with capacitive touch interface.

  • General purpose carrier board with a capacitive touch interface.
  • I2C or USB interface for PCAP on LCD connector.
  • Audio output.

Operating Systems

Linux Android

  • EDIMM CPU modules compliant
  • Industrial temperature range
  • Wide 15 to 30 Vdc single power supply
  • 1x Ethernet 10/100
  • 1x microSD
  • 1x audio output
  • 1x USB Type A
  • 1x CAN bus
  • 1x RS485
  • 1x RS232
  • 1x RS232 for OS Console
  • 1x expansion connector (I2C, SDIO, or SPI, up to 10 GPIO)
  •
  • General purpose LCD connector: 1x 18 or 24 bit single channel LVDS,  1x USB, 1 x I2C for CTP i/f,  1x PWM for backlight control,  Power supply for LCD (+3V3, +5V, 12V)
