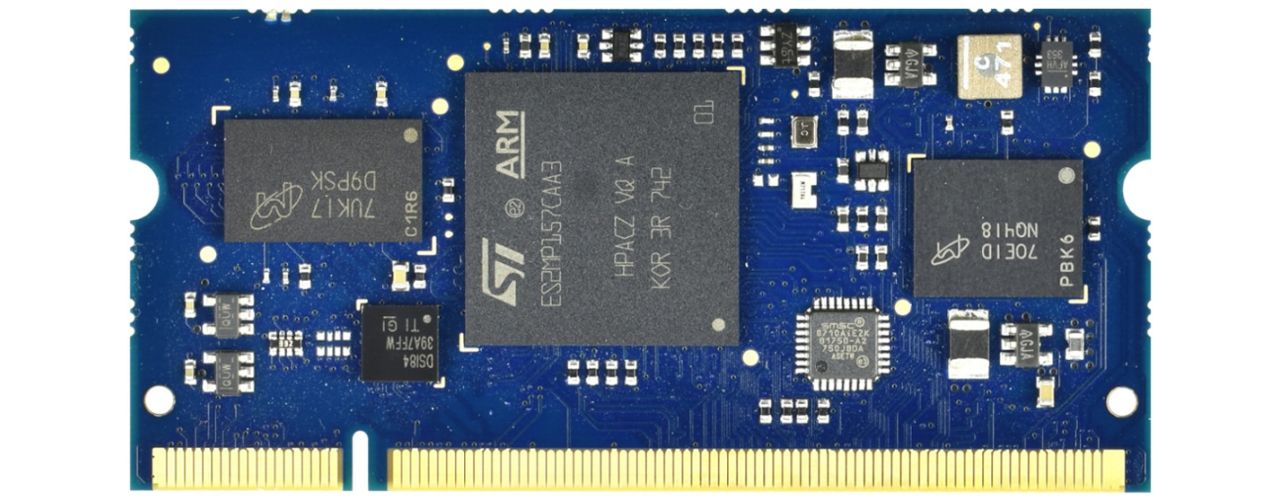

STM32MP157 based EDIMM SOM

i.Core STM32MP15 is based on STM32MP157 processor from ST equipped with a dual-core Cortex-A7 and a Cortex-M4. The new module offers high performance, real-time capabilities, and low-power operation. The wide range of peripherals makes this SOM suitable for many different applications.

CPU

  • ST® STM32MP15x
  • Manufacturer: ST
  • VPU
  • GPU

Cores

  • ARM
  • Dual-Core Cortex-A7@650/800MHz and Cortex M4@200MHz
  • 2 cores

Memory

  • DDR3L@1066MTs
  • 512MB up to 1GB

Graphics

  • 3D GPU: Vivante® - OpenGL® ES 2.0 – Up to 26 Mtriangle/s, 133 Mpixel/s LCD-TFT controller, up to 24-bit // RGB888 – up to WXGA (1366 × 768) @60 fps – Two layers with programmable colour LUT MIPI® DSI 2 data lanes up to 1 GHz each

Video Interfaces

  • DSI, LVDS, Parallel RGB

Video Processing Unit Capabilities

  • Up to WXGA (1366x768) @60fps

Mass Storage

  • 512MB expandible Nand Flash, 4GB eMMC
  • EMMC, NAND

Networking

  • 1x 10/100 Ethernet

USB

  • 1x OTG
  • 2x USB2

PCIe

  • NO

Audio

  • I2S i/f

Peripheral Interfaces

  • 2x I2C (Up to 5)
    (Up to 6x SPI)
    3x UART (Up to 8)
    PWM
    2x CAN Bus (+ up to 2 FD-CAN)
    2x SDIO i/f
    JTAG i/f

Power Supply

  • single 5V

Operating System

  • Linux

Development System

  • Yocto

Operating Temperature

  • -40° up to 85°

Dimensions

  • EDIMM 2.0
  • 67.6 x 32 mm

Product availability

  • 2034
