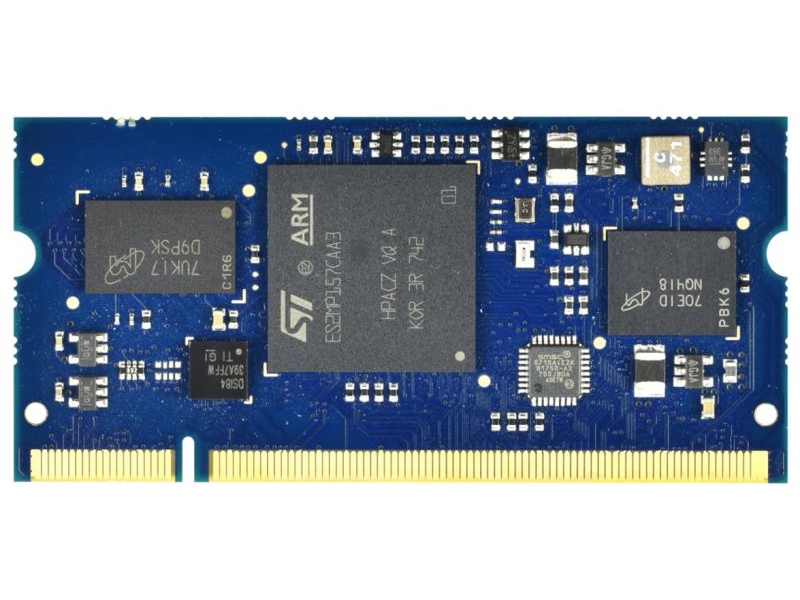

STM32MP157 based EDIMM SOM

i.Core STM32MP15 is based on the new STM32MP157 processor from ST equipped with a dual-core Cortex-A7 and a Cortex-M4. The new module offers high performance, real-time capabilities, and low-power operation. The wide range of peripherals makes this SOM suitable for many different application.

CPU

  • ST® STM32MP15x
  • Manifacturer: ST
  • VPU
  • GPU

Cores

  • ARM
  • Dual-Core Cortex-A7@650/800MHz and Cortex M4@200MHz
  • 2 cores

Memory

  • DDR3L 1066
  • 512MB up to 1GB

Graphics

  • 3D GPU: Vivante® - OpenGL® ES 2.0 – Up to 26 Mtriangle/s, 133 Mpixel/s LCD-TFT controller, up to 24-bit // RGB888 – up to WXGA (1366 × 768) @60 fps – Two layers with programmable colour LUT MIPI® DSI 2 data lanes up to 1 GHz each

Video Interfaces

  • DSI, LVDS, Parallel RGB

Video Processing Unit Capabilities

  • Up to WXGA (1366x768) @60fps

Mass Storage

  • 512MB expandible Nand Flash, 4GB eMMC
  • EMMC, NAND

Networking

  • 1x LAN 100

USB

  • 1x OTG
  • 2x USB2

Audio

  • I2S i/f

Peripheral Interfaces

  • I2C, SPI, UART, PWM, CAN Bus, SDIO i/f, JTAG i/f

Power Supply

  • single 5V

Operating System

  • Linux

Development System

  • Yocto

Operating Temperature

  • -40° up to 85°

Dimensions

  • EDIMM 2.0
  • 67.6 x 32.1 mm

Product availability

  • 2031

Software manual

  • engicam-stm32mp1_REV1.3.pdf - 3.08M (please login to download)
  • engicamstm32mp1dunfell510_REV12.pdf - 2.89M (please login to download)

PCN

  • PCN_1910-1.pdf - 129.61K (please login to download)
  • PCN_2105-1.pdf - 120.88K (please login to download)
  • PCN_21101.pdf - 50.17K (please login to download)

Fact Sheet

Hardware manual

  • iCore_STM32MP1 HW manual 114.pdf - 7.55M (please login to download)

BSP

  • engicam-bsp-vm.pdf (please login to download)
