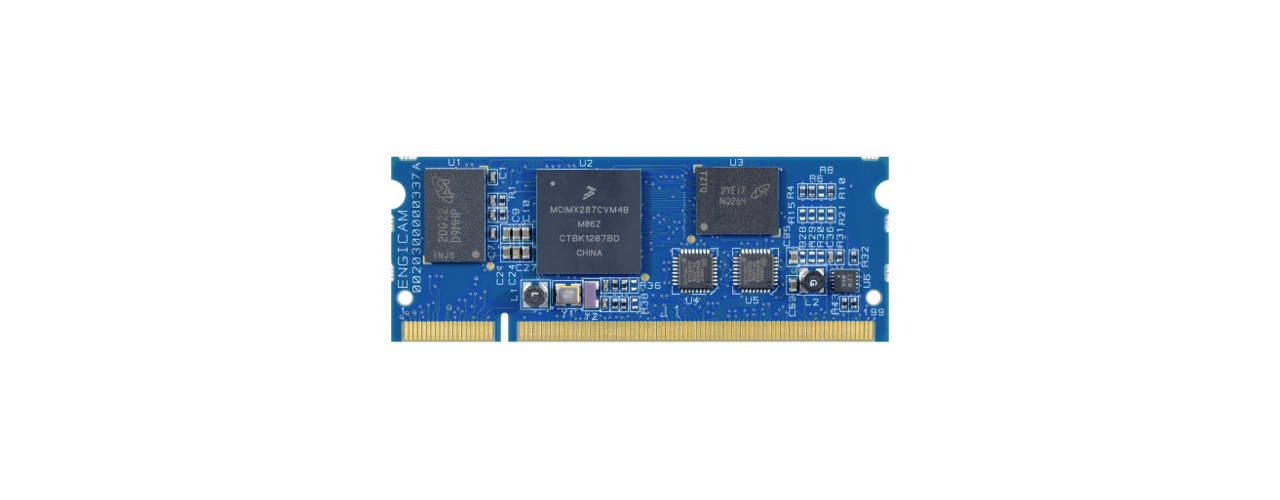

i.MX28 based EDIMM SOM


GEA M6428B/F, based on NXP™i.MX283/7 processor, offers power management, connectivity features and reducing system cost and complexity


Based on NXP™i.MX283/7 processor. The i.MX28 family of multimedia applications processors is the latest extension of NXPs ARM9 product portfolio. The i.MX28 family integrates display, power management, and connectivity features unmatched in ARM9-based devices, reducing system cost and complexity for cost-sensitive applications. With optimized performance and power consumption, the i.MX28 is an ideal fit for fanless systems or for portable equipment that needs to be battery-operated. Numerous connectivity options including dual 10/100 Ethernet with L2 switch address specific needs for industrial applications.

  • 5V single power supply
  • Single-cell lithium battery management
  • Resistive touch screen controller

  • NXP i.MX283/7 application processor
  • Core: ARM9™
  • Frequency: 454MHz
  • DRAM WIDTH: 16bit
  • RAM type: DDR2-400
  • RAM size: 64MB
  • FLASH type: NAND SLC
  • FLASH size: 256MB
  • MAX LCD resolution: WVGA
  • Simultaneous LCDs: 1
  • Parallel LCD: 1x 18bit parallel LCD port up to 800x600
  • LVDS: No
  • HDMI: No
  • CSI input: 8 bit
  • HW ACC: No
  • VIDEO CODEC: No
  • SATA: No
  • External bus I/F: No
  • SDIO: 2x 4 bit
  • CAN: 2x (only on 287)
  • UART: Up to 5
  • I2C: Up to 2
  • I2S: Up to 2
  • SPI: Up to 2
  • USB: 1x OTG, 1x HOST
  • PCI express: No
  • ADC: 4x 12bit
  • Video ADC: No
  • Ethernet: 2x 10/100 with PHY (1 on 283)
  • Industrial temperature range
  • OS: LINUX
  • Status: Production

CPU

  • Manifacturer: NXP

Cores

  • ARM
  • 1x ARM9™ @ 454MHz
  • 1 cores

Memory

  • DDR2 400
  • 1MB up to 64MB

Video Interfaces

  • Parallel RGB

Video Processing Unit Capabilities

  • 18bit parallel LCD port up to WGA

Mass Storage

  • NAND Flash up to 256MB
  • NAND

Networking

  • 2x LAN 100

USB

  • 1x OTG
  • 1x USB2

PCIe

Audio

  • up to 3 x I2S

Peripheral Interfaces

  • SPI, ADC, CAN, SDIO, UARTs, GPIO, 8 bit CSI input, I2C

Power Supply

  • single 5V

Operating System

  • Linux

Operating Temperature

  • 0° up to 85°

Product availability

  • 2025

Hardware manual

  • GeaM6428B-F_HW_Manual_1.1.7.pdf - 1.26M (please login to download)

Software manual

  • GeaM6428B-F_SW_manual_2.0.0.pdf - 1.60M (please login to download)

PCN

  • PCN_1503-2.pdf - 74.66K (please login to download)
  • PCN_1302-1.pdf - 72.39K (please login to download)

BSP

  • engicam-bsp-vm.pdf (please login to download)
