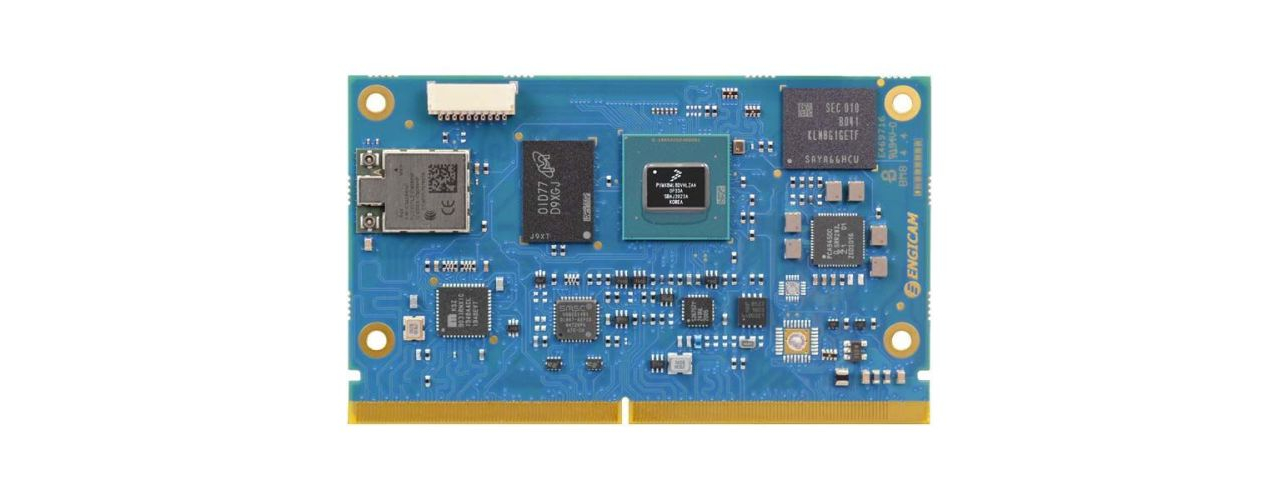

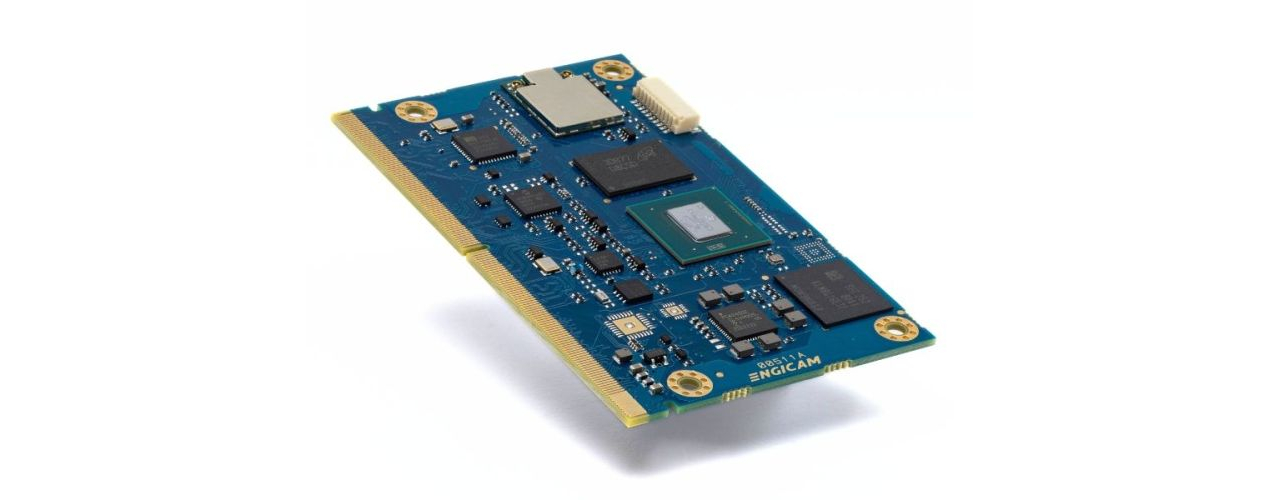

NXP® iMX 8M Plus SMARC SOM

Compliant with the SMARC standard pinout 2.1.

This SmarCore SOM is based on the iMX 8M Plus NXP®  processor and focuses on machine learning and vision, advanced multimedia, and industrial IoT with high reliability.

Build around the powerful quad Arm® Cortex®-A53 processor with a Neural Processing Unit (NPU) operating at up to 2.3 TOPS and real-time control with Cortex-M7.


CPU

  • NXP® i.MX 8M Plus
  • Manufacturer: NXP
  • NPU
  • VPU
  • GPU

Cores

  • ARM
  • Quad Arm® Cortex®-A53 @ up to 1.8GHz processor with a (NPU) up to 2.3 TOPS and Cortex®-M7 CPU @ 800 MHz
  • 4 cores

Memory

  • LPDDR4 4000
  • 2GB up to 4GB

Graphics

  • GC7000UL (2 shaders), OpenGL ES 2.0/3.0/3.1, Vulkan, OpenCL 1.2; GC520 (2D)

Video Interfaces

  • DSI, HDMI, LVDS

Video Processing Unit Capabilities

  • 1080p60 HEVC (h.265, VP9, VP8) dec; 1080p60 HEVC (h.265) enc

Mass Storage

  • Starting from 8GB eMMC drive soldered on-board
  • EMMC

Networking

  • 2x LAN 1000

USB

  • 1x USB2

PCIe

  • PCIe 3.0
  • 1 lanes

Audio

  • I2S Interface

Peripheral Interfaces

  • UART, I2C, JTAG, CAN, SDIO, SPI, GPIOs

Power Supply

  • single 5V

Operating System

  • Linux
  • Android

Development System

  • Yocto

Operating Temperature

  • -40° up to 85°

Dimensions

  • SmarCore
  • 82 x 50 mm

Product availability

  • 2036

PCN

  • PCN_21101.pdf - 50.17K (please login to download)
  • PCN_2211-1.pdf - 84.73K (please login to download)

Fact Sheet

Errata

  • SmarCore_MX8M_Plus_ERRATA_Rev_0.pdf - 73.94K (please login to download)

Hardware manual

  • SmarCore_MX8M_Plus_HW_manual_1.1.0.pdf - 3.78M (please login to download)
