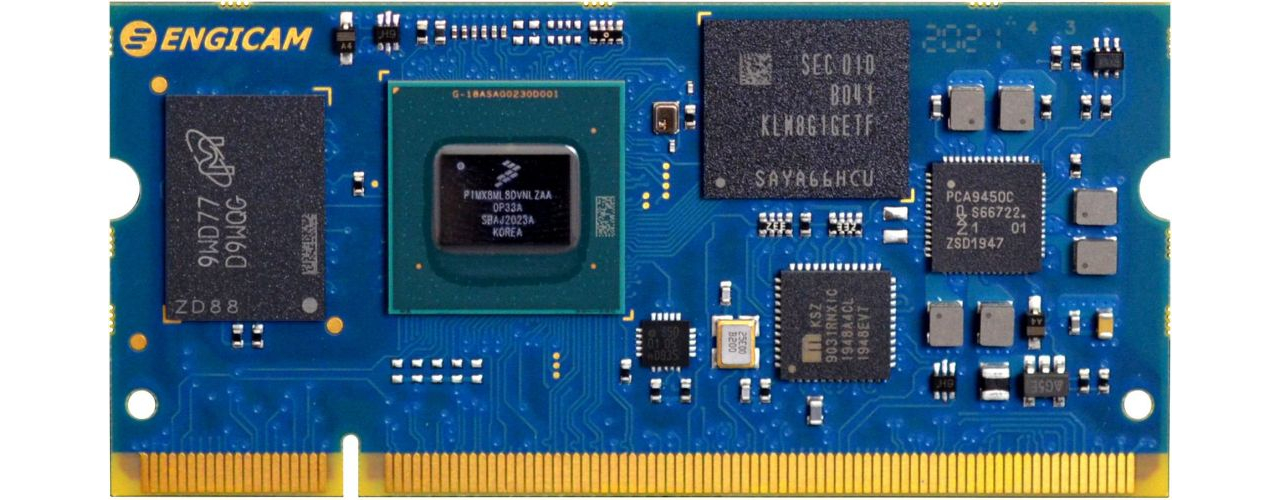

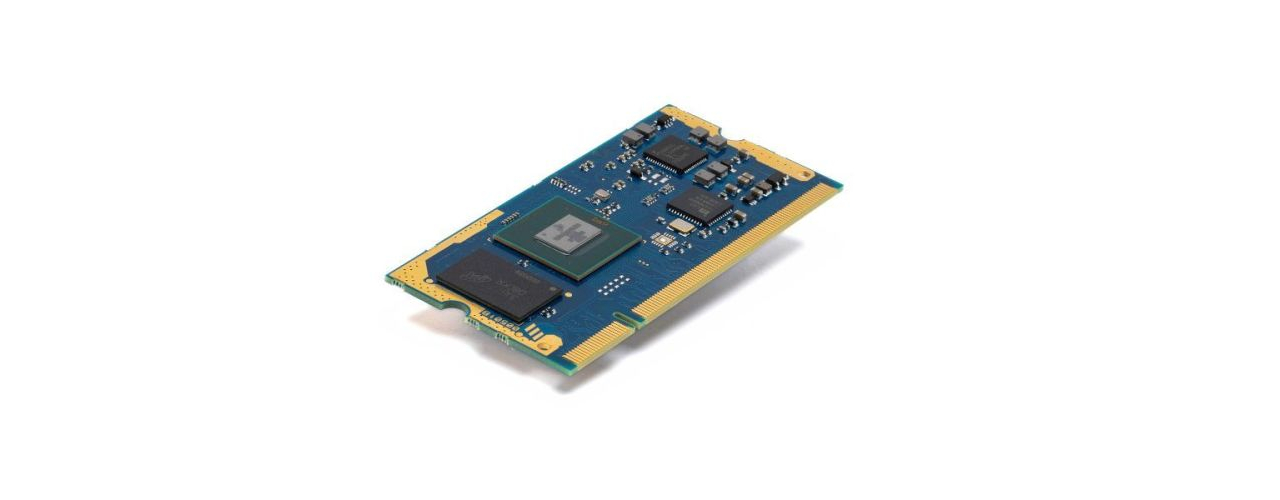

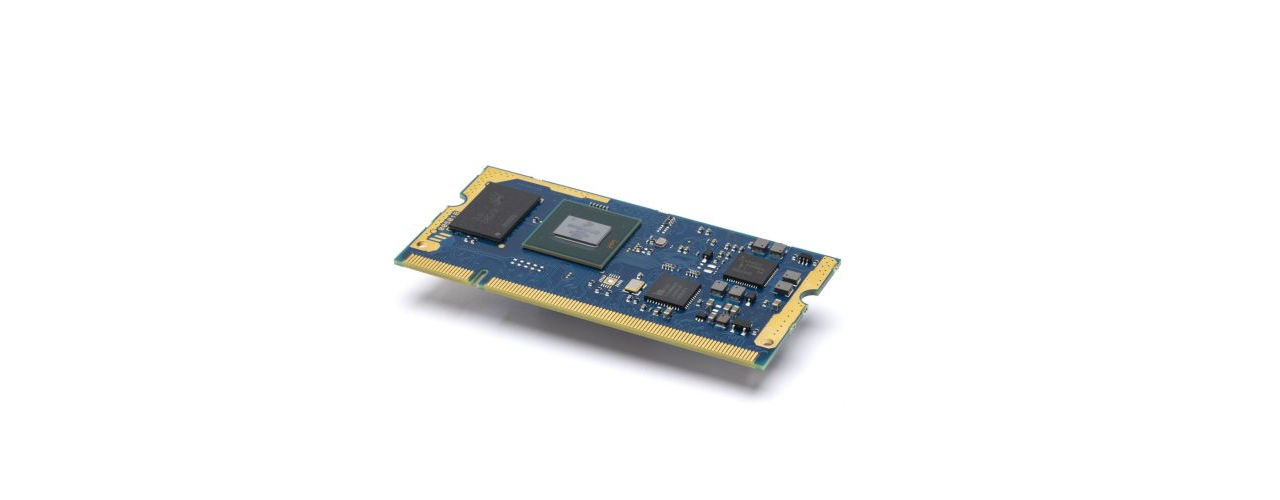

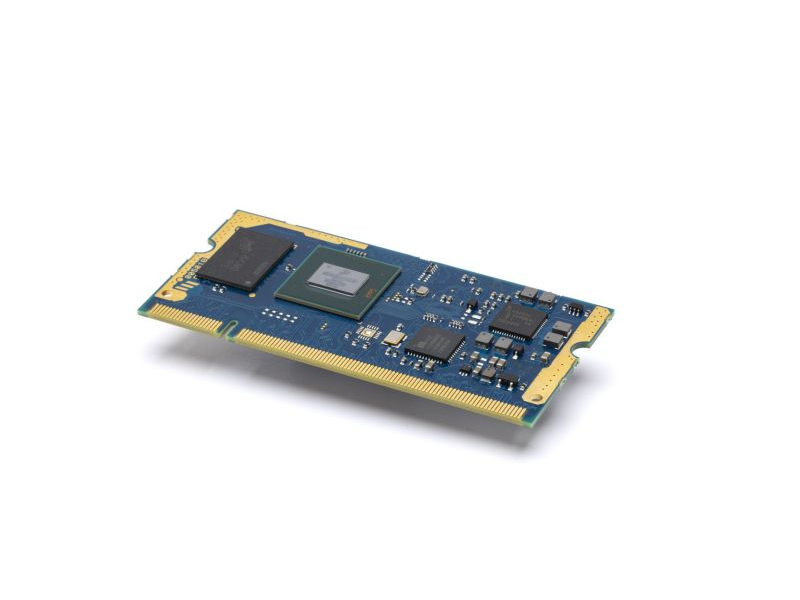

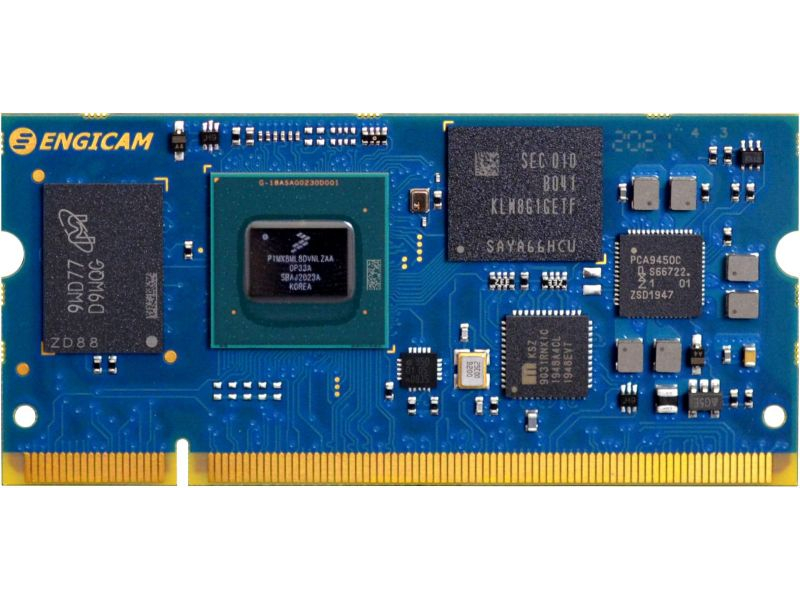

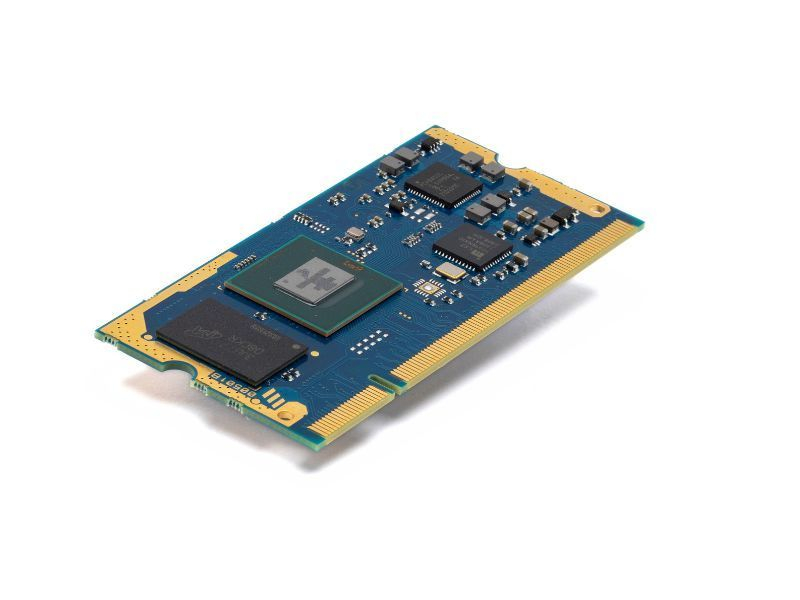

EDIMM SOM based on NXP® i.MX 8M Plus

The new i.Core MX8M Plus is based on i.MX 8M Plus processor equipped with the quad-core Arm® Cortex®-A53 plus Cortex-M7

The i.MX 8MP series features offer powerful video processing with an H.265 video encoder for highly efficient compression in live video streaming applications. It runs at up to 1.8 GHz with an integrated neural processing unit (NPU) that delivers up to 2.3 TOPS.

As the first i.MX processor with a machine learning accelerator, the i.MX 8M Plus processor provides substantially high performance for ML inference at the edge.

Order now

Operating Systems

Linux Android
CPU
CPU : NXP® i.MX 8M Plus
Cores
Cores : Quad Arm® Cortex®-A53 @ up to 1.8GHz processor with a (NPU) up to 2.3 TOPS and Cortex®-M7 CPU @ 800 MHz.
Memory
Memory : up to 4GB LPDDR4
Graphics
Graphics : GC7000UL (2 shaders), OpenGL ES 2.0/3.0/3.1, Vulkan, OpenCL 1.2; GC520 (2D)
Video Interfaces
Video Interfaces : LVDS 18/24bit up to Full HD, MIPI-DSI – 4 lanes option, HDMI up to Full HD, 2x MIPI-CSI – 4 lanes
Video Processing Unit Capabilities
Video Processing Unit Capabilities : 1080p60 HEVC (h.265, VP9, VP8) dec; 1080p60 HEVC (h.265) enc
Mass Storage
Mass Storage : Up to 32GB eMMC
Networking
Networking : Gb Ethernet interface
USB
USB : 1 x USB OTG 3.0, 1 x USB HOST 3.0
PCIe
PCIe : PCIe 3.0
Audio
Audio : I2S Interface
Peripheral Interfaces
Peripheral Interfaces : UART, I2C, SPI, JTAG, CAN, SDIO, GPIOs
Power Supply
Power Supply : + 5V DC
Operative System
Operative System : Linux,Android
Operating Temperature
Operating Temperature : Industrial qualified
Dimensions
Dimensions : 32.1 x 67.6 mm
Product availability (based on processor longevity program)
Product availability (based on processor longevity program) : 10 and 15-year Longevity Program
  • i.CoreMX8M_Plus_HW_Manual_1.0.2.pdf - 5.74M (please login to download)
  • PCN_21101.pdf - 50.17K (please login to download)

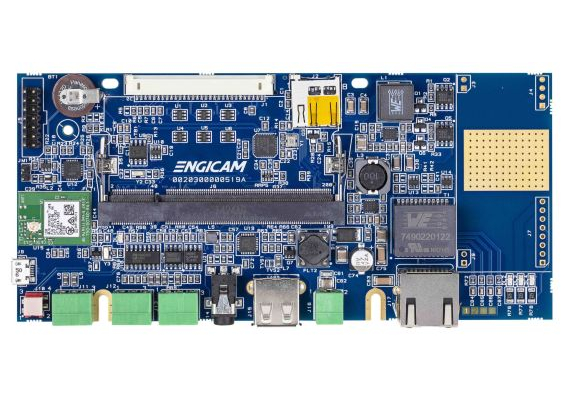

Starterkit available for development
