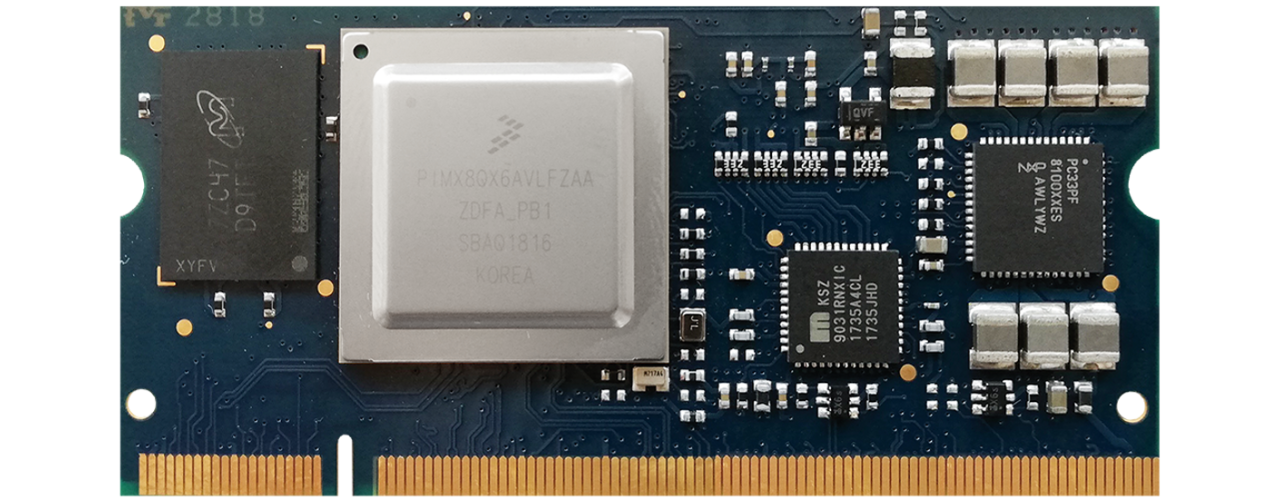

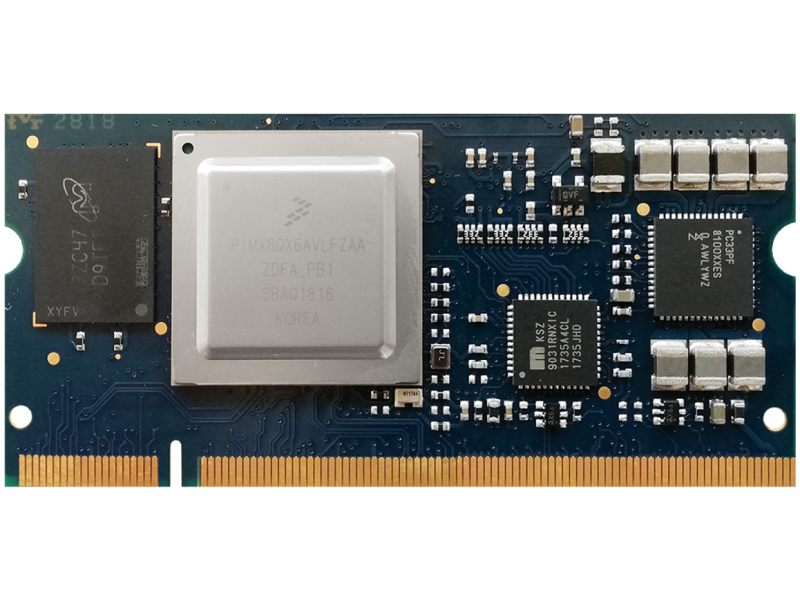

EDIMM SOM based on NXP® i.MX 8X



i.Core MX8X based on NXP™ i.MX 8X series, ideal for safety-certifiable and efficient performance requirements.

Engicam introduces the  new i.Core MX8X system on module family for connectivity, multimedia and industrial HMI applications. The new module will be based on the EDIMM versatile  pinout and will be compatible with the actual Engicam SOM.

Operating Systems


CPU : NXP® i.MX8X up to Quad
Cores : Up to 4 x Cortex-A35@1.2GHz & Cortex-M4F@266MHz
Memory : Up to 2 GB LPDDR4
Graphics : 1 x 2- or 4-Shader, OpenGL ES 3.0 or 3.1 Vulkan® VX Extensions
Video Interfaces
Video Interfaces : MIPI-DSI 2x4-Lanes LVDS 2x1channel or 1xDual channels MIPI-CSI 4 lanes INPUT
Video Processing Unit Capabilities
Video Processing Unit Capabilities : 4Kp30 (h.265, h.264, VP8) dec; 1080p60 (h.264, VP8) enc
Mass Storage
Mass Storage : 4GB eMMC expandible
Networking : 2 x LAN Gb Ethernet
USB : USB OTG 2.0, USB HOST 2.0/3.0
PCIe : 1 x PCIe interface
Audio : 1 x I2S interface
Peripheral Interfaces
Peripheral Interfaces : UART I2C CAN ADC SDIO SPI
Power Supply
Power Supply : + 5V DC
Operative System
Operative System : Linux
Operating Temperature
Operating Temperature : Industrial and consumer qualified
Dimensions : 32.1 x 67.6 mm
Product availability (based on processor longevity program)
Product availability (based on processor longevity program) : 10 and 15-year Longevity Program
  • i.CoreMX8_Series_SW_Manual_1.6.pdf - 2.60M (please login to download)
  • i.CoreMX8X_ERRATA_Rev_0.pdf - 84.95K (please login to download)
  • i.CoreMX8X_HW_Manual_1.0.8.pdf - 7.92M (please login to download)
  • PCN_21101.pdf - 50.17K (please login to download)
This content is only available to authorized users after the login.

Starterkit available for development
