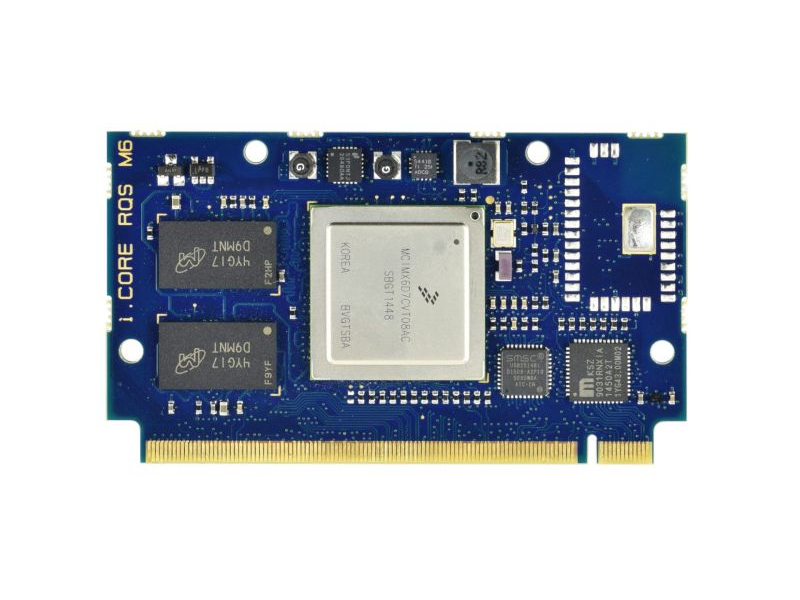

i.MX6 uQseven SOM


Overview

Based on new generation NXP™ i.MX 6 processor.
The i.MX 6 series unleashes the industry’s first truly scalable multicore platform that includes single, dual and quad core families based on the ARM Cortex™-A9 architecture. With high-performance multimedia processing, i.MX 6 series is purpose built for the new era of smart devices.




Operating Systems

Linux Android

GENERAL FEATURES

CPU:
i.MX 6S
i.MX 6DL
i.MX 6D
i.MX 6Q
CORE NUM:
1
2
2
4
FREQ:
800
800
800
800
DRAM WIDTH:
32
64
64
64
RAM TYPE:
DDR3-800
DDR3-800
DDR3-1066
DDR3-1066
RAM SIZE:
256 MB
512 MB
512 MB
1024 MB
FLASH TYPE:
e-MMC
e-MMC
e-MMC
e-MMC
FLASH SIZE:
4 GB
4 GB
4 GB
4 GB
MAX LCD RES:
FULLHD
FULLHD
FULLHD
FULLHD
Simultaneous LCDs:
2
2
4
4
Parallel LCD:
-
-
- -
LVDS:
2
2
2
2
HDMI:
1x TX (1.4)
1x TX (1.4)
1x TX (1.4)
1x TX (1.4)
CSI input:
8 bit
8 bit
2x 8 bit
2x 8 bit
HW ACC:
Yes
Yes
Yes
Yes
VIDEO CODEC:
Yes
Yes
Yes
Yes
SATA:
-
-
1
1
External bus I/F:
-
-
-
-
SDIO:
1x 8bit
1x 8bit
1x 8bit
1x 8bit
CAN:
2
2
2
2
I2C:
Up to 3
Up to 3
Up to 3
Up to 3
UART:
Up to 4
Up to 4
Up to 4
Up to 4
I2S:
Up to 1
Up to 1
Up to 1
Up to 1
SPI:
Up to 2
Up to 2
Up to 2
Up to 2
USB:
5
5
5
5
PCI express:
1x
1x
1x
1x
ADC:
-
-
-
-
Video ADC:
-
-
-
-
Ethernet:
1x 10/100/1000
1x 10/100/1000
1x 10/100/1000
1x 10/100/1000
Temperature:
Comm/Ind
Comm/Ind
Industrial
Industrial
OS:
LINUX, ANDROID
LINUX, ANDROID
LINUX, ANDROID
LINUX, ANDROID
Status:
Production
Production
Production
Production

Operative System
Operative System : Linux,Android
  • Heatsink_assembly_i.CoreRQS_Q-D_REV_B.pdf - 265.11K (please login to download)
  • Heatsink_assembly_i.CoreRQS_S-DL_REV_B.pdf - 259.75K (please login to download)
  • i.CoreRQS_M6S-DL-D-Q_HW_manual_1.1.4.pdf - 5.15M (please login to download)
  • i.CoreM6S-DL-D-Q_SW_manual_Yocto_2.0.5.pdf - 6.18M (please login to download)
  • i.CoreRQS_M6S-DL-D-Q_errata_rev_1.pdf - 103.51K (please login to download)
  • PCN_1503-1.pdf - 85.19K (please login to download)
  • PCN_1503-2.pdf - 74.66K (please login to download)
  • PCN_1508-2.pdf - 75.18K (please login to download)
  • PCN_1704-3.pdf - 130.15K (please login to download)
  • PCN_1707-1.pdf - 126.02K (please login to download)
  • PCN_1802-1.pdf - 116.71K (please login to download)
  • PCN_20.10-1.pdf - 134.90K (please login to download)
This content is only available to authorized users after the login.
This content is only available to authorized users after the login.

Starterkit available for development
