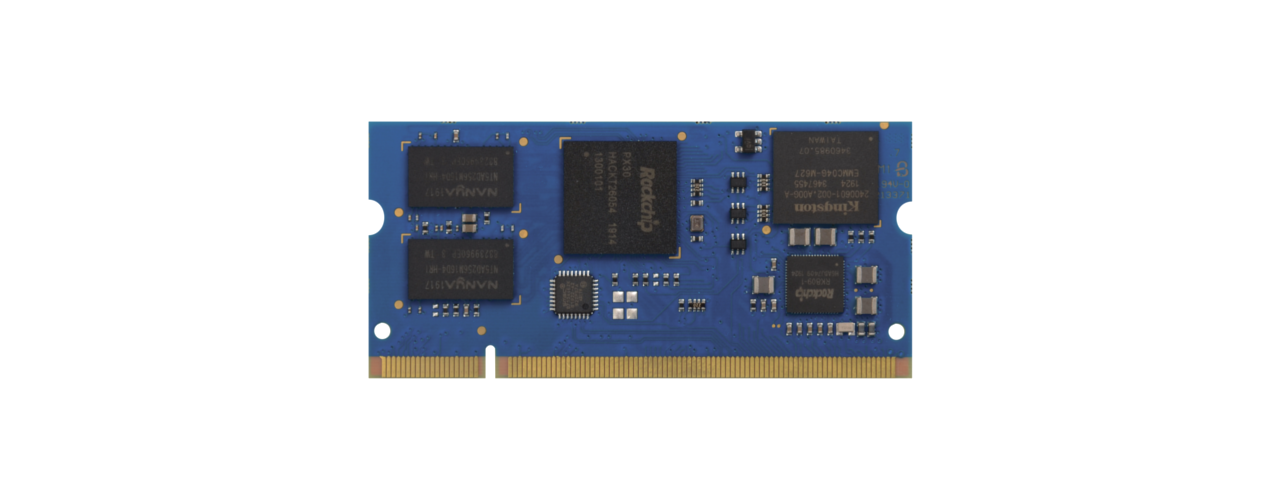

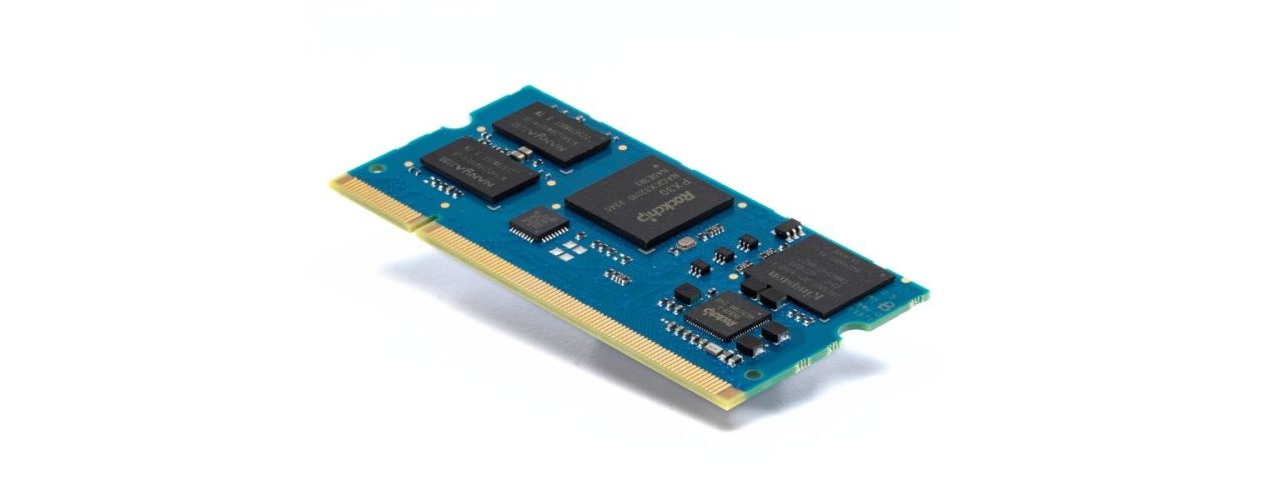

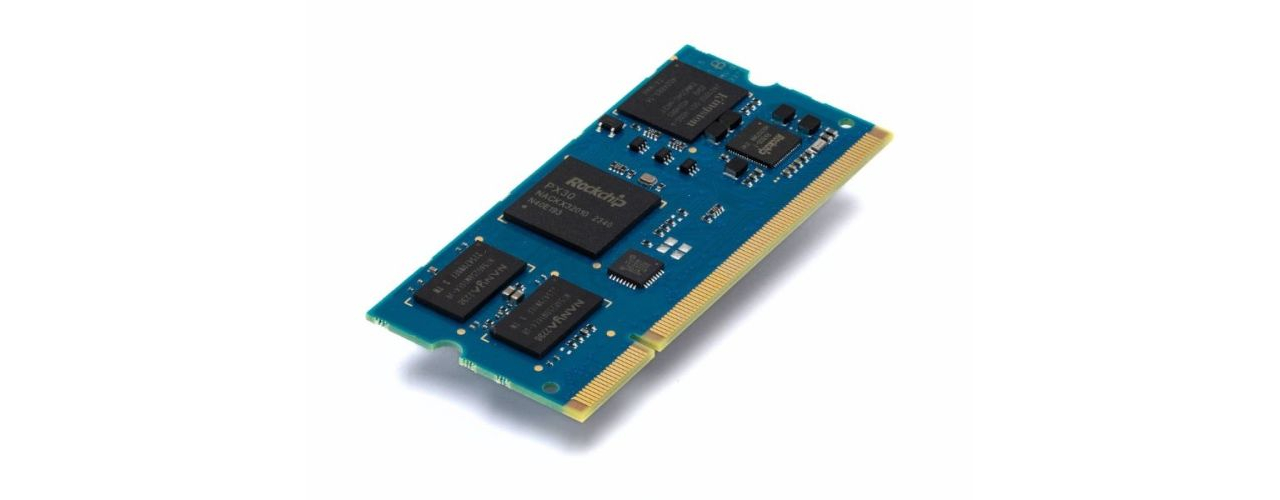

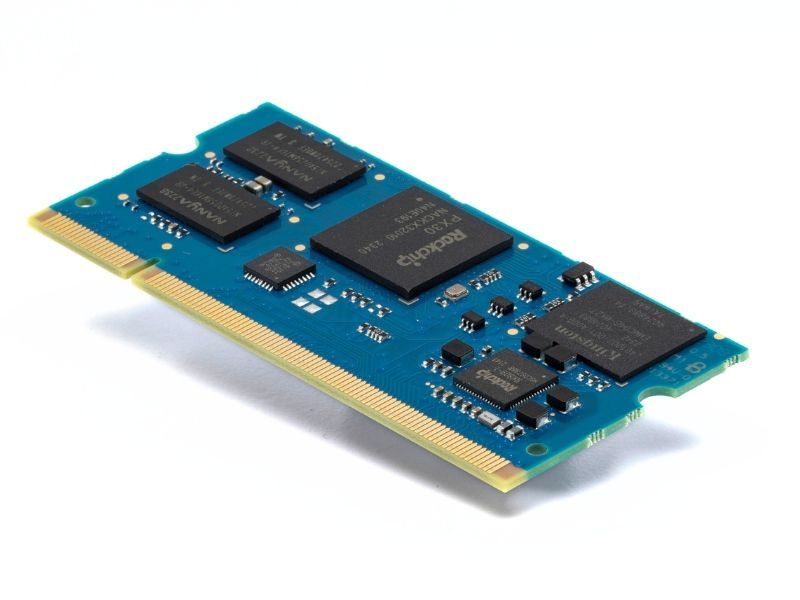

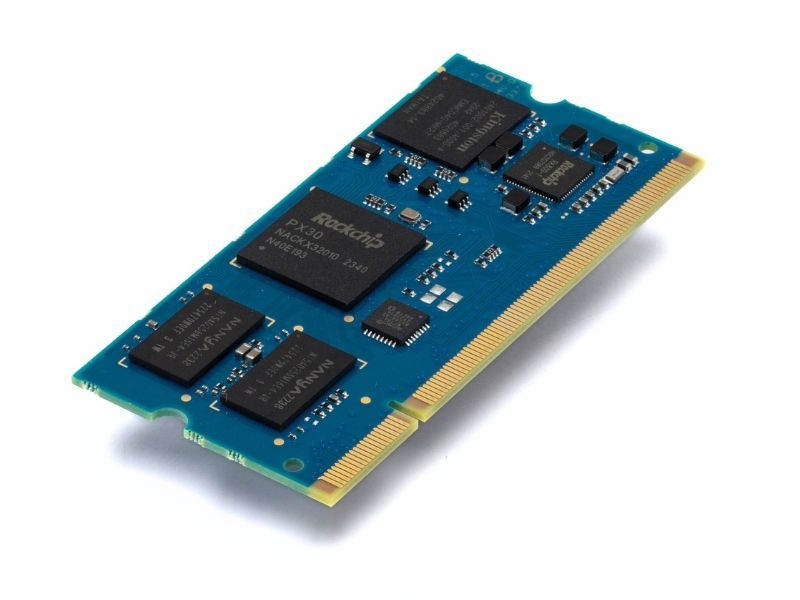

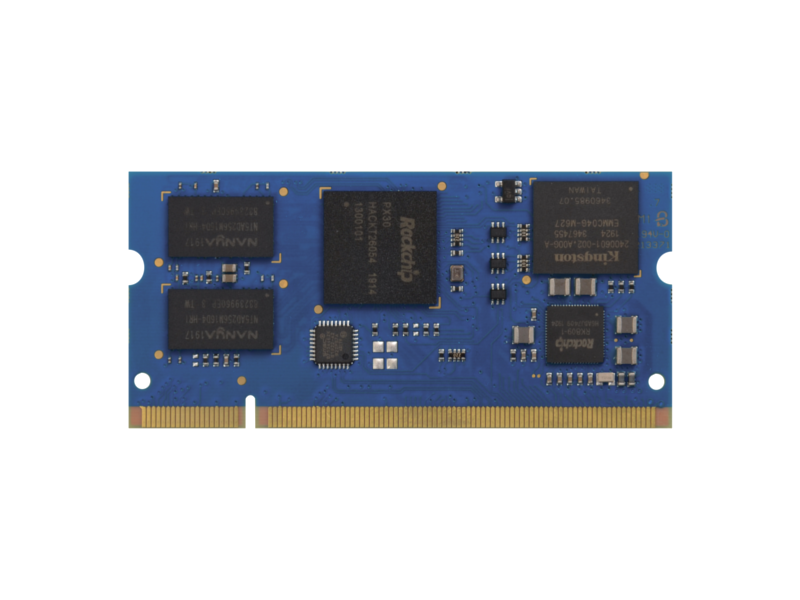

EDIMM SOM based on RockChip® PX30

PX30.Core, based on RockChip PX30 processor is suitable for low power consumption and fan-less application with high-end graphics performances

Engicam introduces the new PX30.Core, equipped with Quad-Core ARM Cortex-A35 for connectivity, multimedia, and HMI applications. The new module will be based on the versatile pinout and will be compatible with the actual Engicam SOM.




CPU

  • RockChip® PX30
  • Manifacturer: Rockchip
  • GPU

Cores

  • ARM
  • Quad-Core ARM Cortex-A35@1.2GHz
  • 4 cores

Memory

  • DDR4 1800
  • 1GB up to 2GB

Graphics

  • Mali G31 OpenGL ES 1.1, 2.0, and 3.2 OpenCL 2.0 Vulkan® VX 1.0

Video Interfaces

  • DSI, LVDS, Parallel RGB

Video Processing Unit Capabilities

  • 1080p@60 HEVEC MAIN10 (h.265, VP8) dec; 1080p@60 h.264 enc

Mass Storage

  • eMMC 4 GB expandible
  • EMMC

Networking

  • 1x LAN 100

USB

  • 1x OTG
  • 2x USB2

Audio

  • I2S i/f

Peripheral Interfaces

  • UART, I2C, SPI, SDIO, Audio Codec on SOM, MIPI-CSI 4 lanes with 8Mp ISP

Power Supply

  • single 5V

Operating System

  • Linux
  • Android

Development System

  • BuildRoot,Debian,Yocto

Operating Temperature

  • 0° up to 80°

Dimensions

  • EDIMM 2.0
  • 67.6 x 32.1 mm

Product availability

  • 2028

Errata

  • PX30.CoreERRATA_Rev_0.pdf - 74.22K (please login to download)

PCN

  • PCN_2105-2.pdf - 117.57K (please login to download)
  • PCN_21101.pdf - 50.17K (please login to download)

Hardware manual

  • PX30.Core_HW_manual_1.1.2.pdf - 5.23M (please login to download)

Software manual

  • PX30.Core_SW_Manual_2.5.pdf - 767.21K (please login to download)

Fact Sheet

BSP

  • engicam-bsp-vm.pdf (please login to download)
