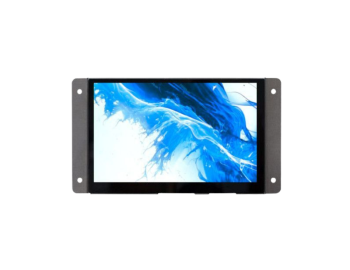

Capacitive touch 10.1 display + frame based on standard EDIMM2.0, front mount.

Operating Systems

Linux Android Windows
  • EDIMM 2.0 CPU modules compliant
  • TFT 10.1 "
  • Capacitive multi-touch display 1280x800 resolution
  • Wide 15 to 30 Vdc single power supply
  • Brightness 600 cd/mq
  • up to 2x Ethernet 10/100/1000
  • WiFi + BT
  • 1x microSD
  • 1x audio output
  • 2x USB Type A
  • 1x USB OTG device (Micro USB type)
  • 1x CAN bus
  • 1x RS485
  • 1x RS232 ( or alternative second CAN bus)
  • 1x RS232 for OS Console
  • 1x expansion connector (I2C, GPIOs, USB, SPI, Power supply +3,3V and 5V)
  • 1x HDMI Standard Interface ( not supported on all SOMs)
  • General purpose LCD connector: 1x 18 or 24 bit single channel LVDS,  Capacitive touch panel via USB or I2C,  1x PWM for backlight control,  Power supply for LCD (+3V3, +5V, 12V)
  • 1x LCD connector to drive dual LVDS channel displays
