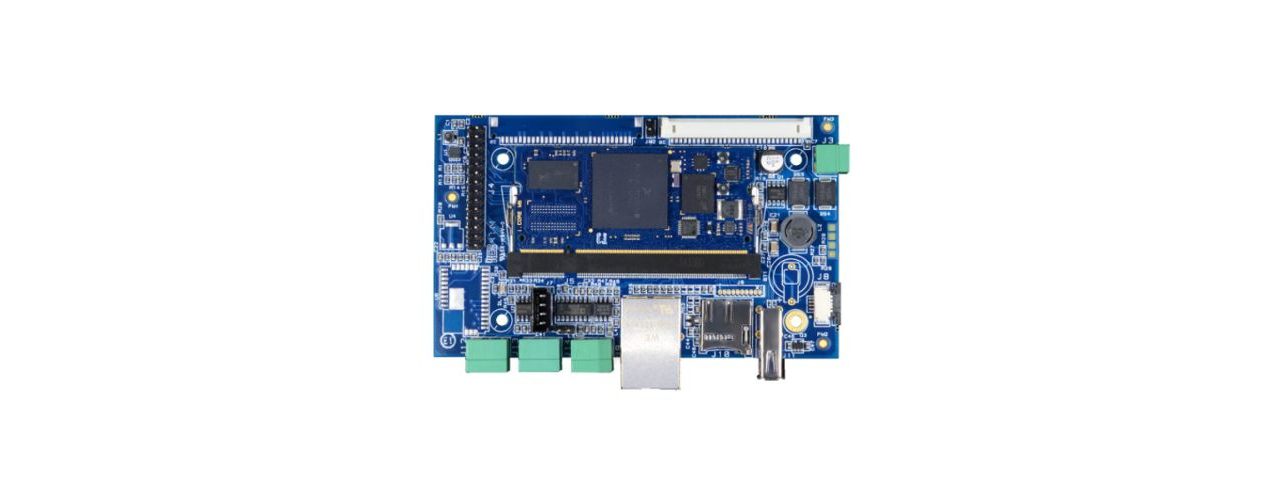

Low cost carrier board for resistive and capacitive touch support.

Low cost carrier board for resistive and capacitive touch support.
Dual channel LVDS available.
WiFi option available.

Low cost carrier board for resistive and capacitive touch support. Dual channel LVDS available. WiFi option available.

Operating Systems

Linux Android

  •  CPU modules compliant
  • Industrial temperature range
  • Wide 10 to 30 Vdc single power supply
  • 1x Ethernet 10/100
  • 1x microSD
  • 1x RTC (optional)
  • 1x WiFi (optional)
  • 1x USB Type A
  • 1x CAN bus
  • 1x RS485
  • 1x RS232
  • 1x RS232 for OS Console
  • 1x expansion connector (I2C, USB OTG, I2S, SDIO or SPI, up to 18 GPIO)
  • 1 standard + 1 optional LCD connector driving:
    • 2x 18 bits single channel LVDS
      (indipendent or mirror channel mode)
    • 1x PWM for backligth control
    • Power supply for LCD (+3V3, +5V)

Accessories

Hardware manual

  • OpenframeLOW_COST_10.1_USR_Manual_2.0.6.pdf - 1.60M (please login to download)
