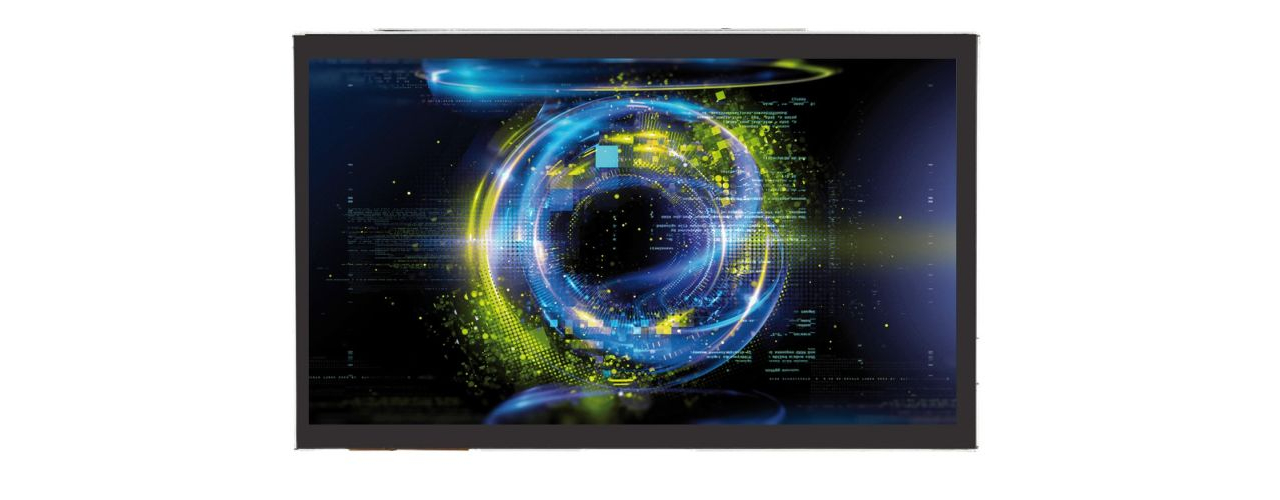

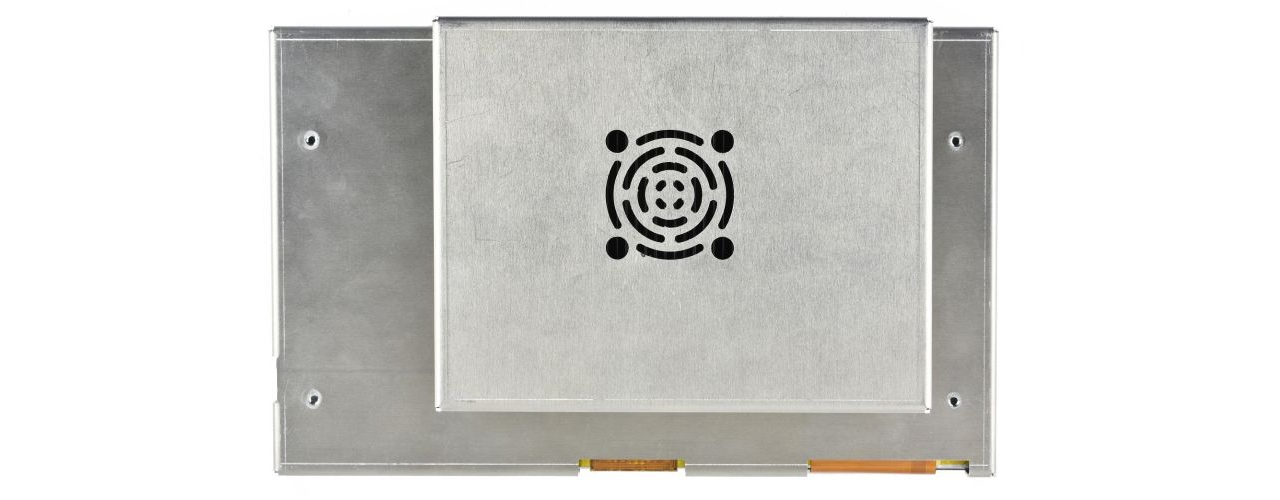

X.TOUCH 10.1” YES Open Frame

Based on standard SMARC modules, this open frame terminal can be driven by the new powerful modules family x86. The capacitive multi-touch panel and the Windows OS allow a really a user-friendly graphic user interface. The new X.TOUCH Open frame family is fully supported also by Android and Linux OS. The frameless touch panel system is very easy to be integrated into the final housing. The boxed version is available as an option.

Operating Systems

Linux Android Windows
  • TFT 10.1" 1024x600 resolution
  • 5 point multitouch CTP
  • LED backlight, brightness 340 Cd/m2
  • +24 Vdc single power supply
  • 1 x HDMI interface up to 4K
  • 1 x LVDS interfaceup to FULL HD
  • 1 x Stereo Audio interrface
  • 1 x Gb Ethernet
  • 1 x USB3.0
  • 2 x USB2.0
  • 1 x microSD
  • 1 x RS485
  • 2 x RS232
  • 1 x M.2 slot KEY E for Wi-Fi interface
  • 1 x M.2 slot KEY B for SSD interface
