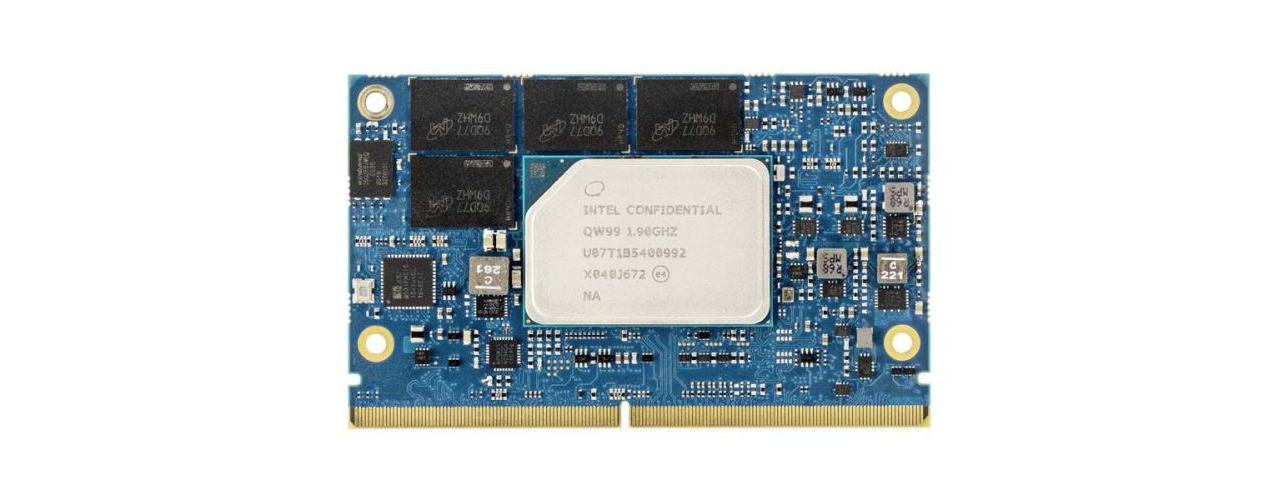

Intel® SMARC SOM



This Engicam’s SMARC standard module is based on Intel® processors ELKHART LAKE series ATOM® x6000E.

The module is built on new levels of CPU and graphics performance and it integrates IoT features, real-time performance, manageability, security, and functional safety.

CPU

  • Intel® Elkhart Lake
  • Manufacturer: Intel
  • VPU
  • GPU

Cores

  • x86
  • Up to 4 up to 1.9GHz, L2 cache 1.5MB
  • 2, 4 cores

Memory

  • LPDDR4@3733MTs
  • 2MB up to 16GB

Graphics

  • Intel® 11th generation (Gen 11) LP graphics controller. DirectX 12.1 compliant, OpenGL ES 3.1/3.0/2.0/1.1, OpenGL 4.5 supported, OpenCL™ 1.2, Vulkan 1.0 APIs, Dedicated FIVR for Graphics, Intel® Virtualization Technology for Directed I/O (VT-d)

Video Interfaces

  • DP, eDP, HDMI, LVDS

Video Processing Unit Capabilities

  • HW accelerated encode HEVC/H.265, H.264, VP9, VP8, WMV9/VC1, MPEG-2, VC-1. JPEG/MJPEG dec HW accelerated encode HEVC/H.265, H.264, VP9, JPEG/MJPEG enc

Mass Storage

  • Starting from 4GB eMMC drive soldered on-board
  • EMMC, SATA

Networking

  • 2x 1Gb Ethernet

USB

  • 1x OTG
  • 3x USB2
  • 2x USB3

PCIe

  • 4
  • up to 4xPcie Gen3

Audio

  • I2S Interface, HDA

Peripheral Interfaces

  • UART, I2C, PCIe 3.0, SPI, JTAG, CAN, SDIO, GPIO

Power Supply

  • single 5V

Operating System

  • Linux
  • Windows

Development System

  • Yocto

Operating Temperature

  • -40° up to 85°

Dimensions

  • SmarCore
  • 82 x 50 mm

Product availability

  • 2031
