Intel® SMARC SOM

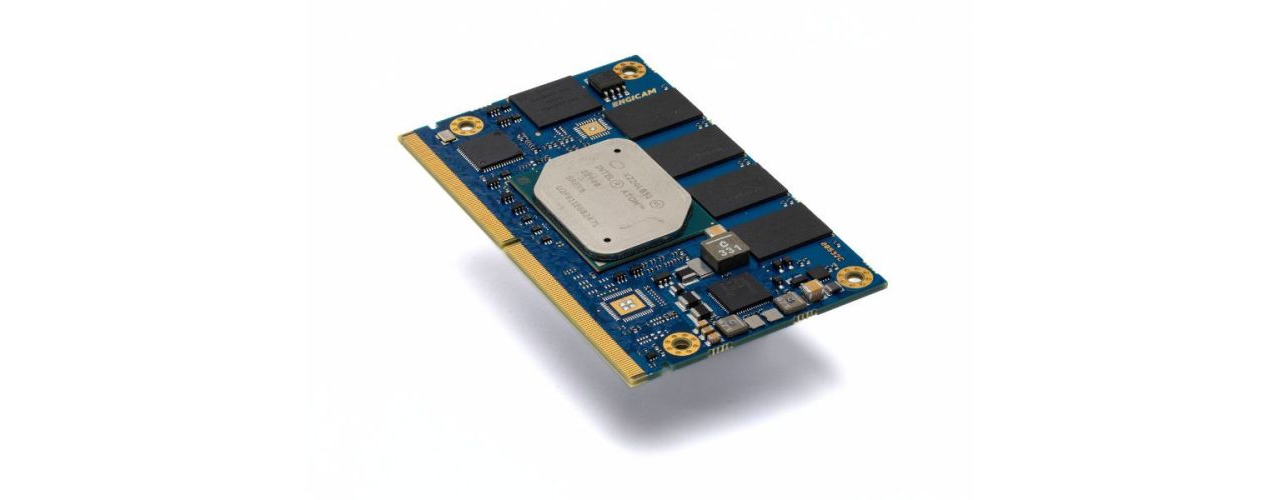

Engicam present SmarCore APL-x86 SOM based on Low Power Intel® Atom™, Celeron® and Pentium® processors (formerly Apollo Lake). The new module is based on the SMARC standard pinout.

CPU

  • Intel® Apollo Lake
  • Manifacturer: Intel
  • GPU

Cores

  • x86
  • Up to 4 up to 2.5GHz, L2 cashe 2MB
  • 2, 4 cores

Memory

  • DDR3L 1866
  • 2GB up to 8GB

Graphics

  • Graphics : Intel® 9th generation (Gen 9) LP graphics.
    HW accelerated encode HEVC (L5), H.264 (L5.2), MVC (L5.1) VP8, JPEG/MJPEG.

Video Interfaces

  • DP, HDMI, LVDS

Video Processing Unit Capabilities

  • HW accelerated encode HEVC (L5), H.264 (L5.2), MVC (L5.1) VP8, JPEG/MJPEG. HW accelerated decode HEVC (L5.1), H.264 (L5.2), MVC (L5.2) VP8, VP9, MPEG2, VC-1, WMV9, JPEG/MJPEG.

Mass Storage

  • 1 x SATA Gen3, 16GB eMMC 5.0 expandible
  • EMMC, SATA

Networking

  • 1x LAN 1000

USB

  • 1x OTG
  • 4x USB2
  • 2x USB3

PCIe

  • up to 4 x PCIe Gen2
  • 4 lanes

Audio

  • 1 x HDA and 1 x I2S

Peripheral Interfaces

  • I2C, SPI, UART, SDIO, GPIO

Power Supply

  • single 5V

Operating System

  • Linux
  • Android
  • Windows

Development System

  • Yocto

Operating Temperature

  • 0° up to 85°

Product availability

  • 2020

Hardware manual

  • Heatsink_assembly_SMARC_APL.pdf - 349.57K (please login to download)
  • SmarCoreAPL_Hw_manual_1.1.1.pdf - 3.07M (please login to download)
