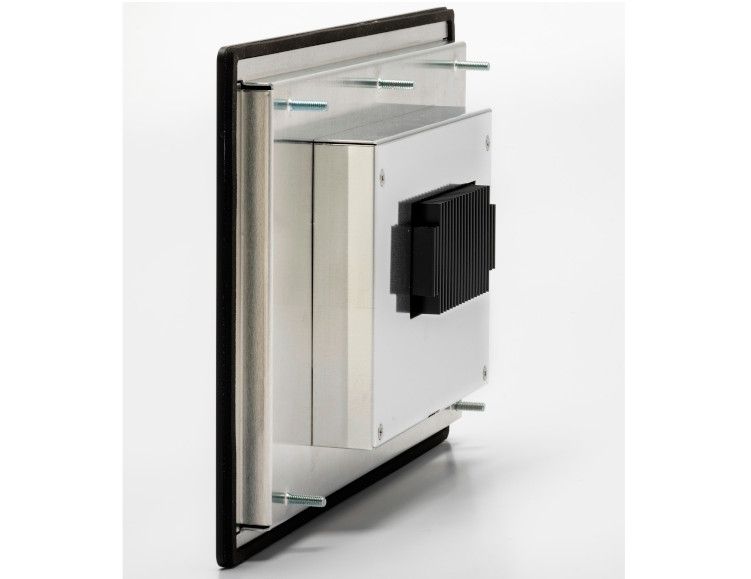

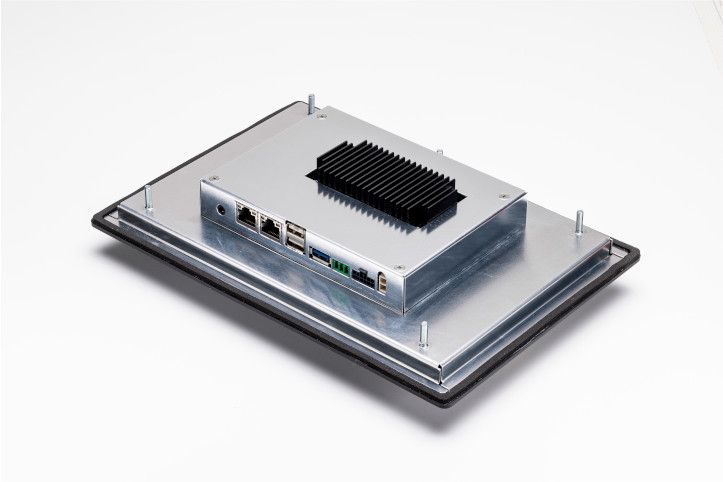

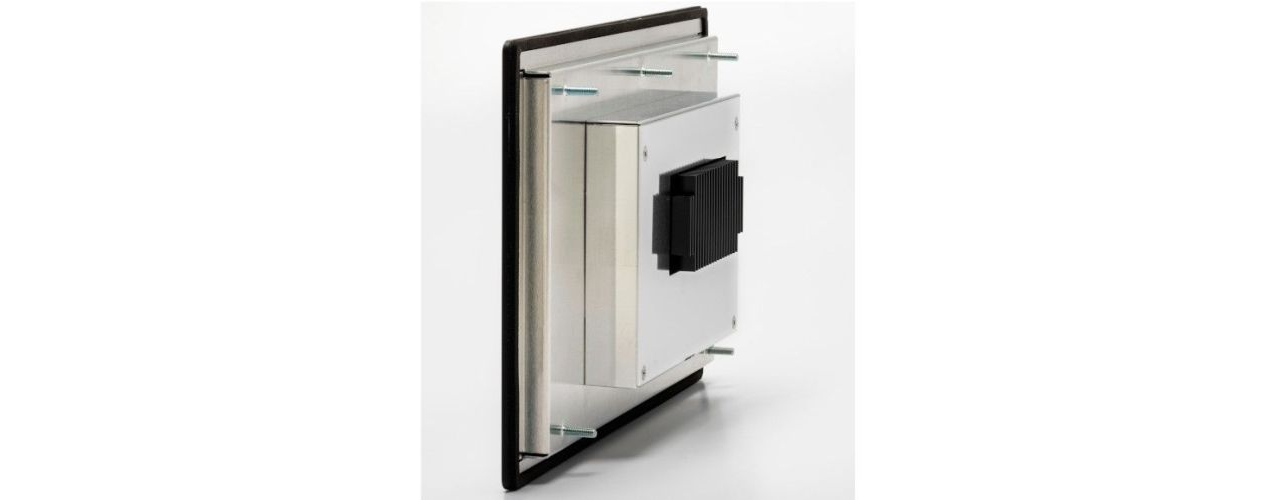

Capacitive touch 10.1 display + frame based on standard SMARC x86, front mount.

Capacitive touch 10.1 display + frame based on standard SMARC x86, front mount.

Operating Systems

Linux Android Windows
  • SMARC x86 modules compliant
  • TFT 10.1 "
  • Capacitive multi-touch display 1280x800 resolution
  • Wide 15 to 30 Vdc single power supply
  • Brightness 600 cd/mq
  • up to 2x Gb Ethernet
  • WiFi + BT
  • 24 bit single channel LVDS
  • UART RS232, RS485
  • Capacitive touch panel via USB or I2C
  • CAN Bus
  • 1 x PWM for backlight control
  • I2C
  • GPIOs
  • 1 x HDMI standard connector
  • SDIO
  • JTAG i/f
  • WiFi on SSD M.2 KEY E
  • WWAN on SSD M.2 KEY B
