New carrier board based on MicroGEA modules

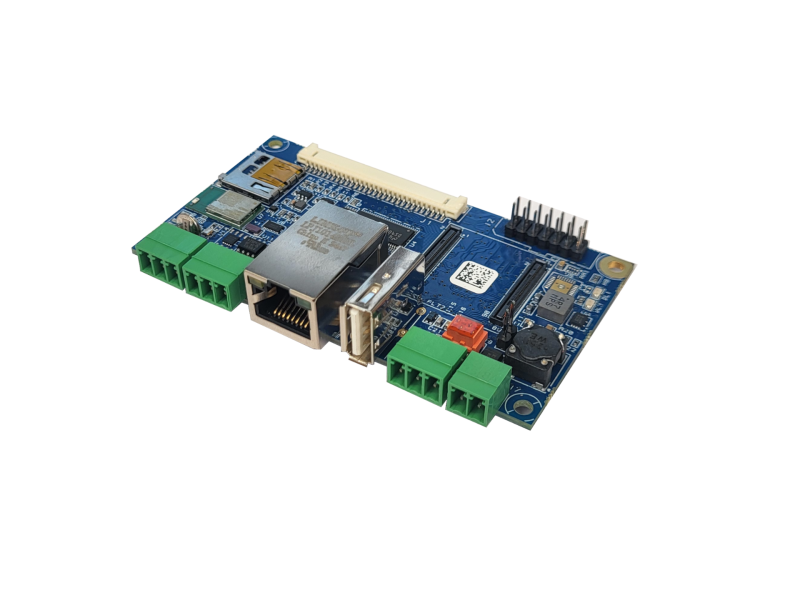

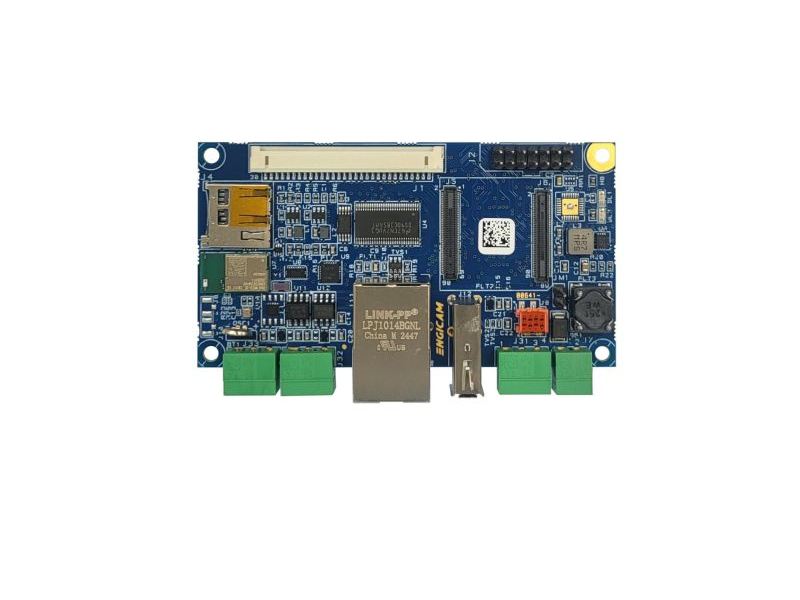

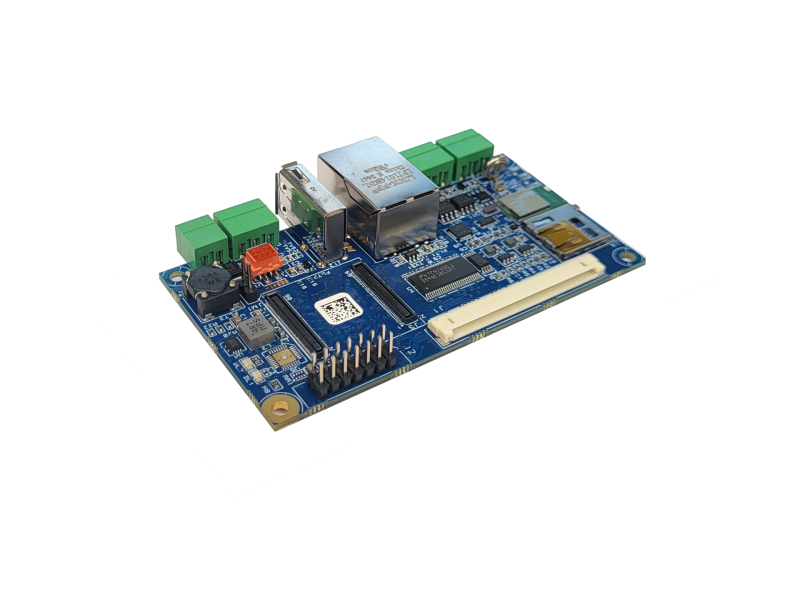

The MicroTouch is the new Engicam general-purpose carrier board based on MicroGEA SOMs equipped with a wide variety of connectivity and capacitive touch interfaces.

Operating Systems

Linux
  • MicroGEA Module compliant
  • Wide 7 to 30 Vdc single power supply
  • 1 x 10/100 Ethernet interface
  • WiFi + BT (option)
  • 1 x microSD
  • USB Type A
  • 1 x CAN Bus
  • 1 x RS232
  • 1 x RS232 for OS Console
  • 1 x RS485
  • 1 x Expansion Connector (I2C, CAN, USB, UART, up to 10 GPIO)
  • General purpose LCD connector: 1x 24-bit single channel LVDS
  • Industrial temperature range
  • Size: 93 x 50 mm
