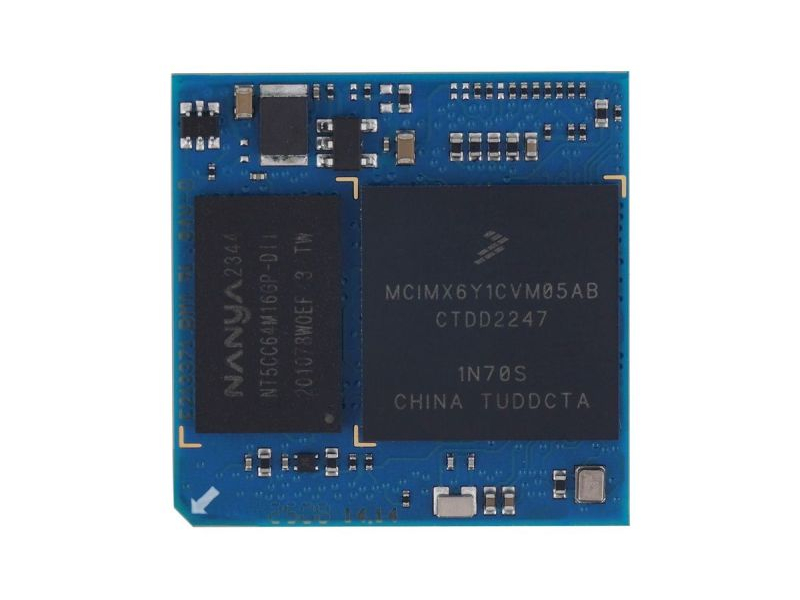

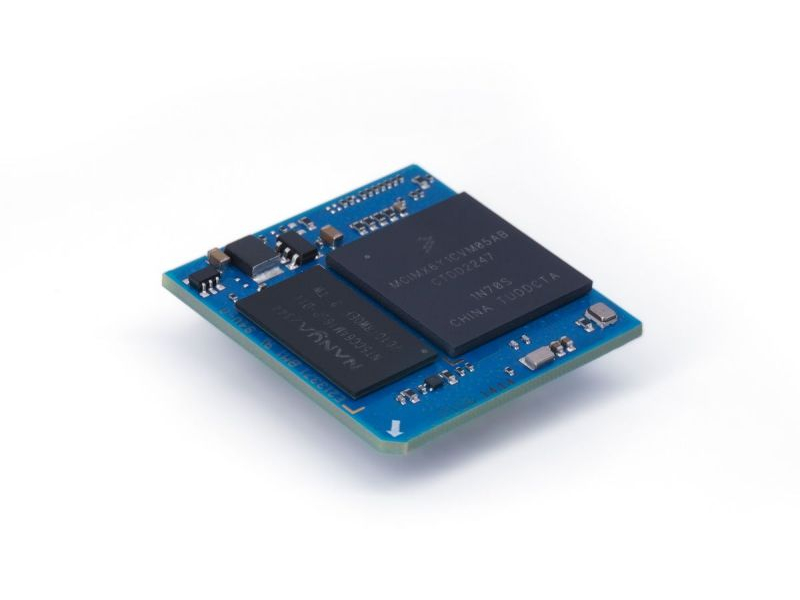

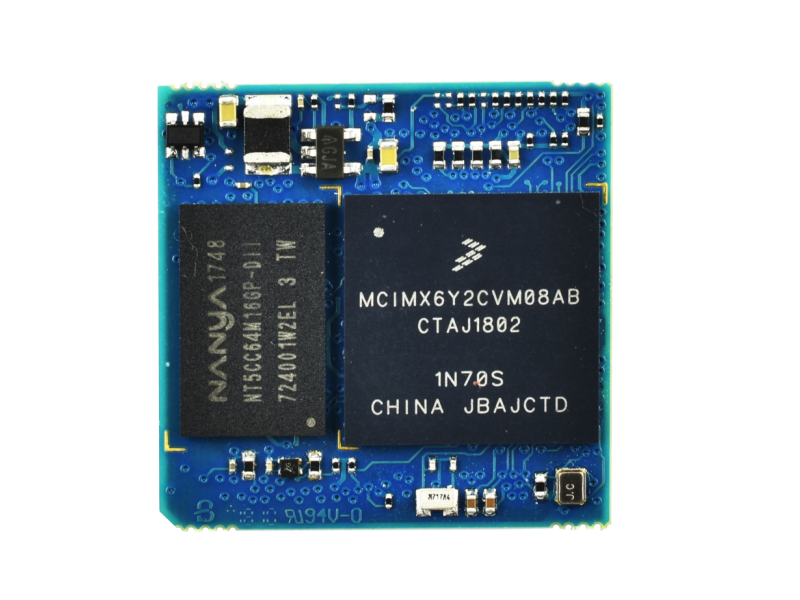

i.MX 6ULL based Micro SOM

This MicroGEA is the smallest module on the market based on i.MX 6ULL. Everything is included in an amazing size of 25 x 25 mm, 3.5 mm in height.

This release of the MicroSOM family comes with the low-cost and power-efficient processor NXP i.MX 6ULL provides e-paper driving capability ( EPD up to 2048x1536), LCD with up to WXGA (1366x768) resolution, and many other peripherals.

CPU

  • NXP® i.MX6ULL
  • Manufacturer: NXP

Cores

  • ARM
  • Single-Core Cortex-A7@ up to 900MHz
  • 1 cores

Memory

  • DDR3L@800MTs
  • 128MB up to 1GB

Graphics

  • Electrophoretic Display (EPD) controller Pixel processing pipeline (PXP) to support 2D image processing including color-space conversion, scaling, alpha-blending, and rotation.

Video Interfaces

  • Parallel RGB

Video Processing Unit Capabilities

  • Up to WXGA (1366x768) for LCD; Up to 2048x1536 for EPD

Mass Storage

  • Nand Flash
  • NAND

Networking

  • 1x 10/100 Ethernet

USB

  • 1x OTG
  • 1x USB2

PCIe

  • NO

Audio

  • I2S interface

Peripheral Interfaces

  • Up to 3 I2C Up to 3 SPI Up to 8 PWM Up to 7 UART Up to 2 CAN Bus Up to 2 SDIO interfaces Up to 2 ADC

Power Supply

  • single 3.3V

Operating System

  • Linux

Development System

  • Debian
  • Yocto

Operating Temperature

  • -40° up to 85°

Dimensions

  • MicroGEA
  • 25 x 25 mm

Product availability

  • 2031
