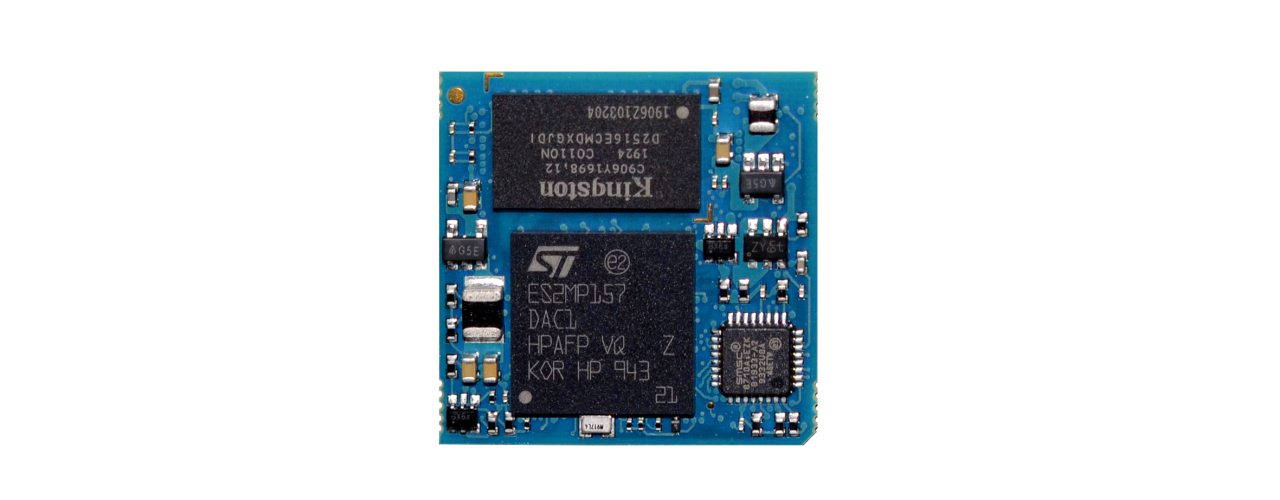

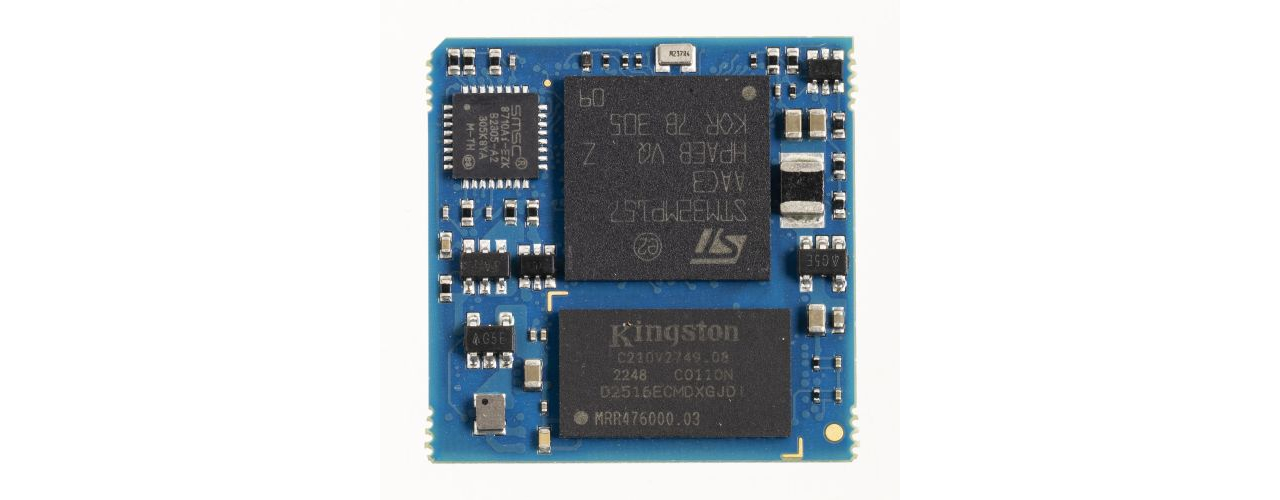

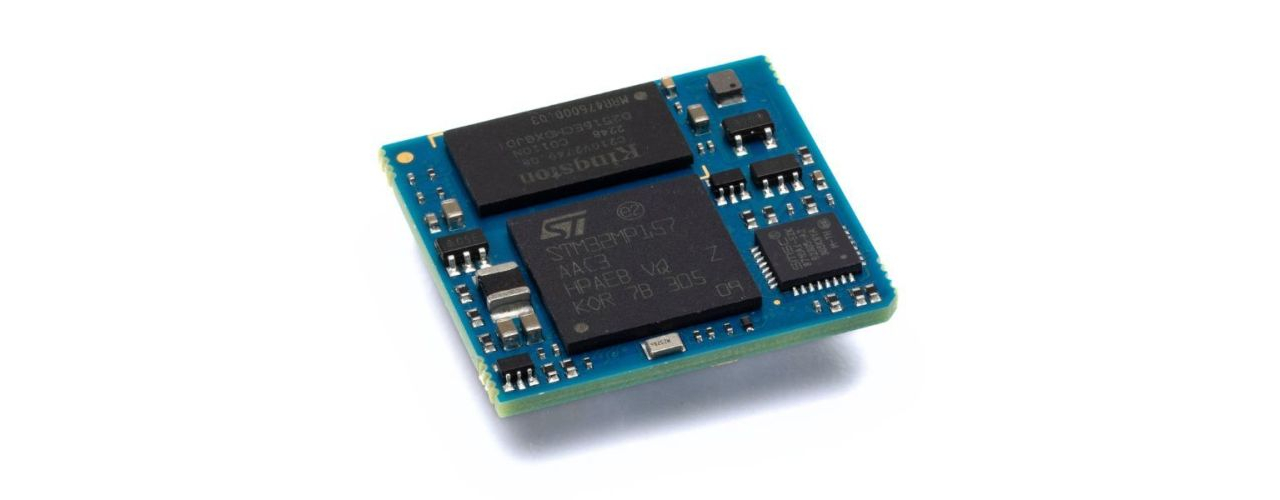

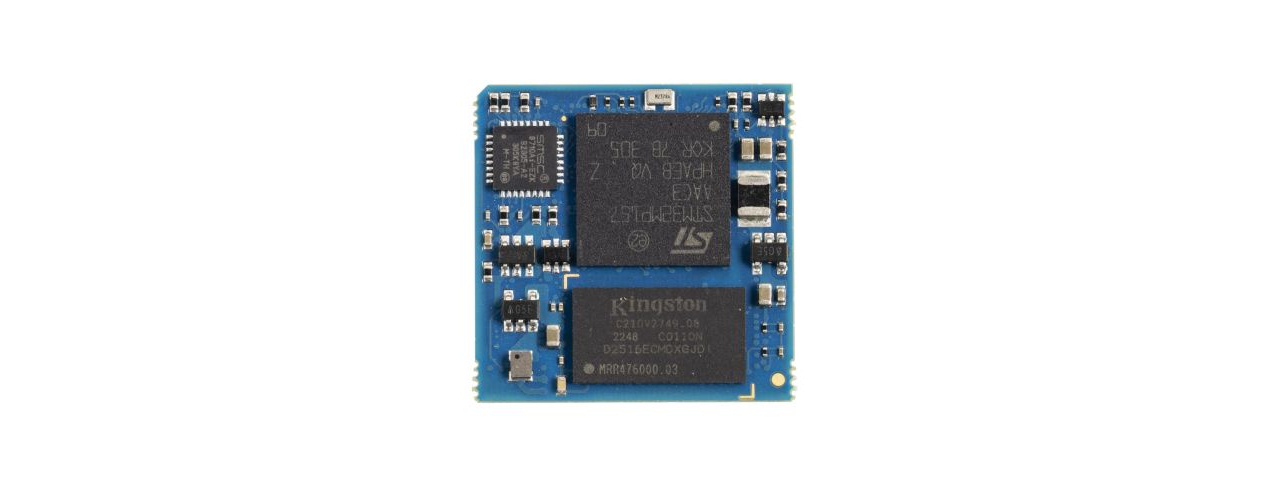

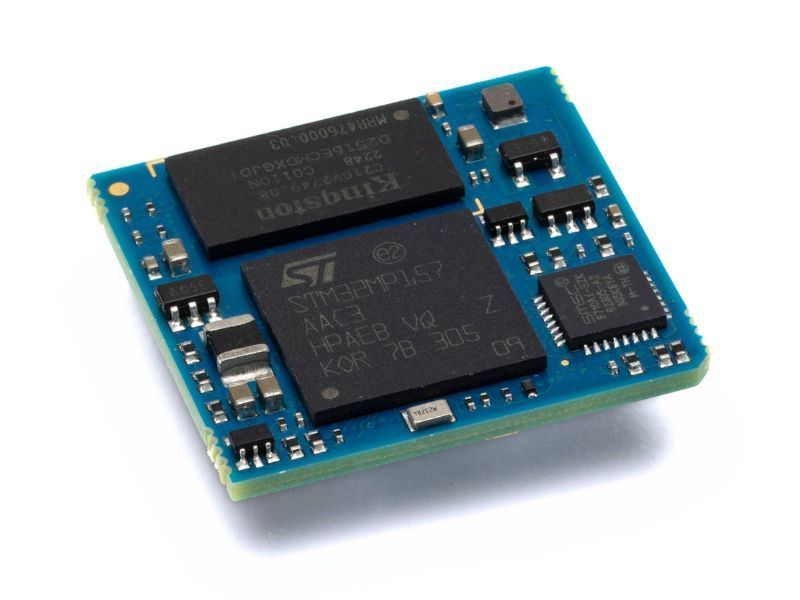

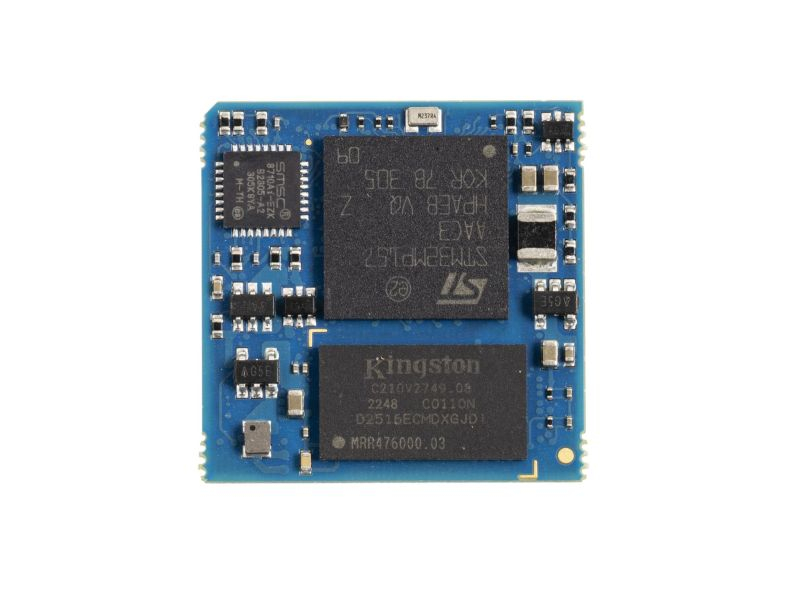

ST® STM32MP157 based Micro SOM

MicroGEA STM32MP1 is based on the new STM32MP157 processor from ST(R) equipped with a Dual-core Cortex-A7 and a Cortex-M4. The new module offers very high performance, real-time capabilities, and low-power operation. The SOM comes with a wide range of peripherals included in an amazing form factor (25mm x 25mm)

Operating Systems

Linux
CPU
CPU : ST® STM32MP157AAC
Cores
Cores : Dual-Core Cortex-A7@650/800MHz and Cortex M4@200MHz
Memory
Memory : Up to 1GB DDR3L-800
Graphics
Graphics : 3D GPU: Vivante® - OpenGL® ES 2.0 – Up to 26 Mtriangle/s, 133 Mpixel/s LCD-TFT controller, up to 24-bit // RGB888 – up to WXGA (1366 × 768) @60 fps – Two layers with programmable colour LUT MIPI® DSI 2 data lanes up to 1 GHz each
Video Interfaces
Video Interfaces : Up to 24bit Parallel
Video Processing Unit Capabilities
Video Processing Unit Capabilities : Up to WXGA(1366x768)
Mass Storage
Mass Storage : 512MB Nand Flash
Networking
Networking : 1 x 10/100 Ethernet i/f
USB
USB : Up to 2 x USB Host, 1 x USB OTG
Audio
Audio : I2S i/f
Peripheral Interfaces
Peripheral Interfaces : I2C, SPI, UART, PWM, CAN Bus, SDIO i/f, JTAG i/f, ADC
Power Supply
Power Supply : +3,3V DC
Operative System
Operative System : Linux
Operating Temperature
Operating Temperature : Industrial qualified
Dimensions
Dimensions : 25 x 25 mm
  • MicroGEASTM32MP1_ERRATA_Rev_0.pdf - 52.91K (please login to download)
  • PCN_1910-1.pdf - 129.61K (please login to download)
  • PCN_20.03-5.pdf - 116.92K (please login to download)
  • Engicam-stm32mp1openstlinux-4.19_Rev1.4.pdf - 3.12M (please login to download)
  • MicroGEASTM32MP15_Adapter_for_JTAG_AN_1.0.0.pdf - 1.60M (please login to download)
  • MicroGEASTM32MP15_HW_manual_1.1.5.pdf - 6.02M (please login to download)
