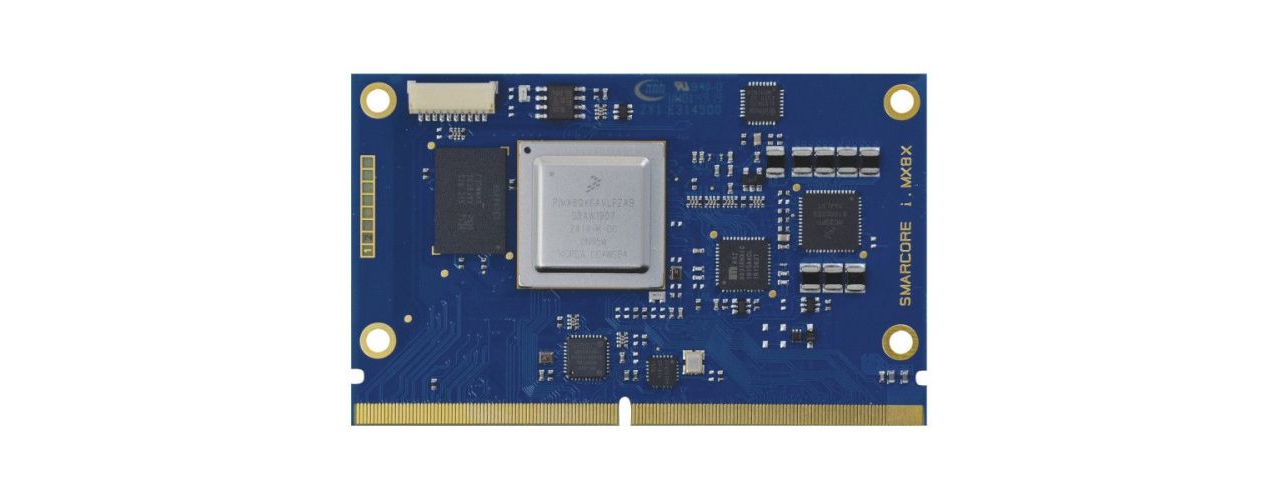

NXP® i.MX8X SMARC SOM

Engicam introduces the new SmarCore MX8X SOM based on Powerful NXP®
iMX8X processors. The new module will be based on the Smarc standard pinout.

CPU

  • NXP® i.MX8X
  • Manifacturer: NXP
  • VPU
  • GPU

Cores

  • ARM
  • Up to 4 x Cortex-A35@1.2GHz & Cortex-M4F@266MHz
  • 2, 4 cores

Memory

  • LPDDR4 2400
  • 2GB up to 4GB

Graphics

  • 1 x 2- or 4-Shader, OpenGL ES 3.0 or 3.1 Vulkan® VX Extensions

Video Interfaces

  • DSI, LVDS

Video Processing Unit Capabilities

  • 4Kp30 (h.265, h.264, VP8) dec; 1080p60 (h.264, VP8) enc

Mass Storage

  • 4GB eMMC expandible to 32 GB
  • EMMC

Networking

  • 2x LAN 1000

USB

  • 4x USB2
  • 1x USB3

PCIe

  • PCIe 3.0 1 lane
  • 1 lanes

Audio

  • I2S interface

Peripheral Interfaces

  • UART I2C 3xCAN/CAN FD SDIO SPI GPIO ADC TPM 2.0 option available

Power Supply

  • single 5V

Operating System

  • Linux
  • Android

Development System

  • Yocto

Operating Temperature

  • -40° up to 85°

Dimensions

  • SmarCore
  • 82 x 50 mm

Product availability

  • 2035

Software manual

  • i.CoreMX8_Series_SW_Manual_1.6.pdf - 2.60M (please login to download)

PCN

  • PCN_2101-10.pdf - 80.78K (please login to download)

Errata

  • SmarcoreMX8X_ERRATA_Rev_0.pdf - 88.25K (please login to download)

Fact Sheet

Hardware manual

  • SmarCore_MX8X HW manual 107.pdf - 4.80M (please login to download)

BSP

  • engicam-bsp-vm.pdf (please login to download)
