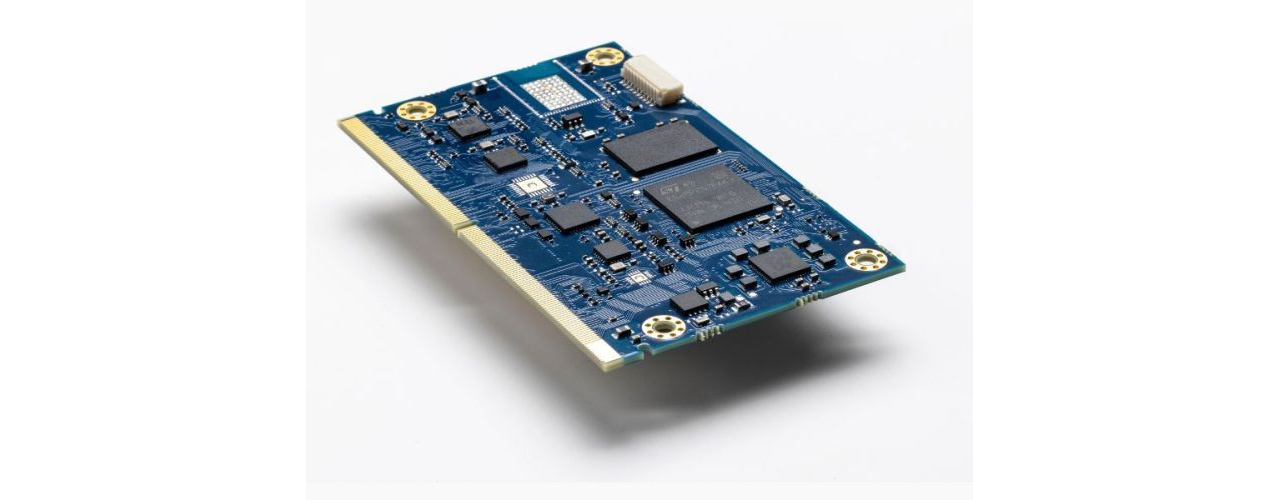

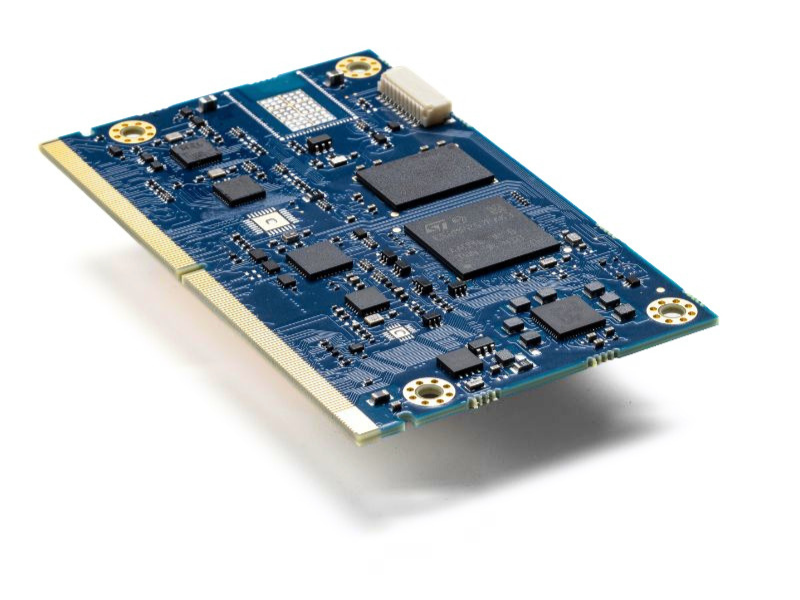

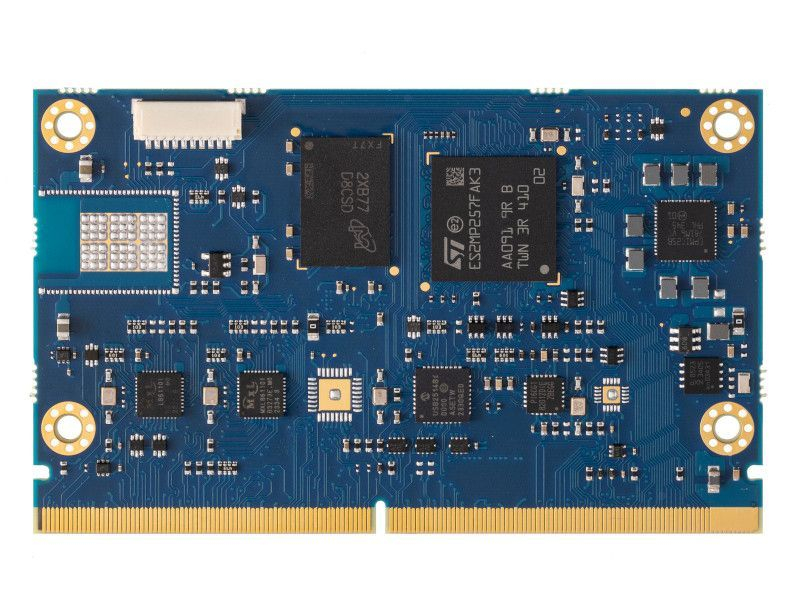

STM32MP25x based SMARC

SmarCore STM32MP2 is based on the next-gen STM32 MPUs by ST® Microprocessors. Industrial-grade 64-bit MPU for secure Industry 4.0 and advanced edge computing applications that require high-end multimedia capabilities. This new SOM includes single or dual Arm® Cortex®-A35 up to 1.5 GHz and Arm Cortex-M33 at 400 GHz, NPU at 1.35 TOPS, time-sensitive network support 3D GPU. Robustness, extended connectivity, high-end graphics and strong security.

CPU

  • ST® STM32MP25x
  • Manufacturer: ST
  • NPU
  • VPU
  • GPU

Cores

  • ARM
  • SINGLE OR DUAL CORE CORTEX-A35 @ 1.5 GHz AND CORTEX-M33@400MHz
  • 1, 2 cores

Memory

  • LPDDR4@2400MTs
  • 2GB up to 4GB

Graphics

  • 3D GPU: VeriSilicon® - Up to 900 MHz OpenGL® ES 3.2.8 – Vulkan 1.2 OpenCL™ 3.0, OpenVX™ 1.3 Up to 138 Mtriangle/s, 900 Mpixel/s

Video Interfaces

  • DSI, LVDS

Video Processing Unit Capabilities

  • • 1080p60 HEVC (h.264, VP8) dec • 1080p60 HEVC (h.264, VP8) enc

Mass Storage

  • Starting from 8GB eMMC drive soldered on-board
  • EMMC

Networking

  • 2x 1Gb Ethernet

USB

  • 4x USB2
  • 1x USB3

PCIe

  • 1

Audio

  • I2S Interface

Peripheral Interfaces

  • Serial, I2C, SPI, CAN Bus, PWM, SDIO i/f, JTAG i/f, PCIe, GPIOs

Power Supply

  • single 5V

Operating System

  • Linux

Development System

  • Yocto

Operating Temperature

  • -40° up to 85°

Dimensions

  • SmarCore
  • 82 x 50 mm

Product availability

  • 2034
