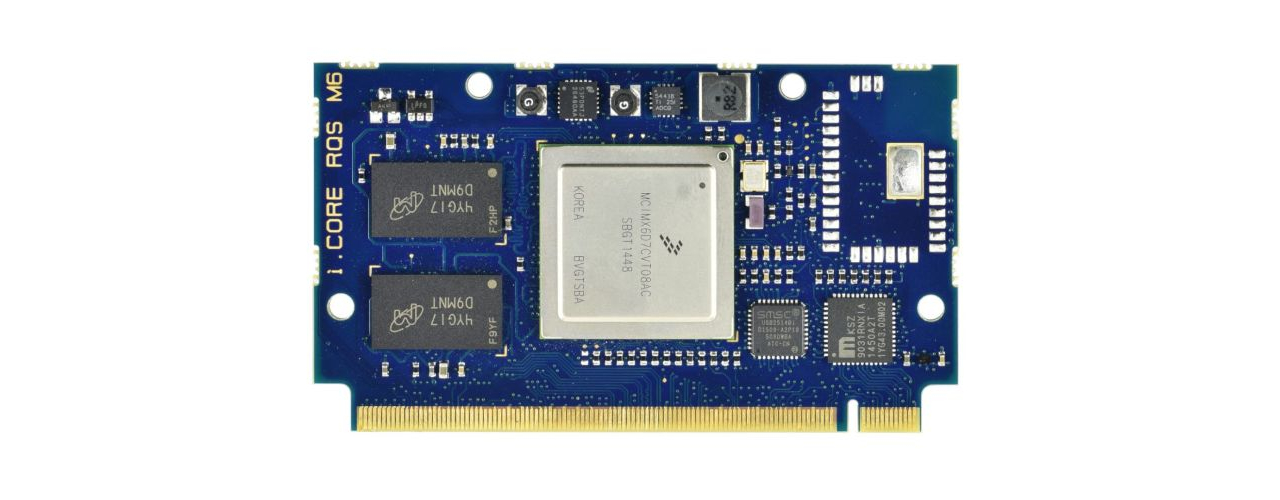

i.MX6 uQseven SOM


Based on NXP™ i.MX 6 processor unleashes the industry’s first truly scalable multicore platform that includes single, dual, and quad core families based on the ARM Cortex™-A9 architecture. With high-performance multimedia processing, i.MX 6 series is purpose-built for the new era of smart devices.




CPU

  • NXP® i.MX6
  • Manufacturer: NXP
  • GPU

Cores

  • ARM
  • Up to 4 x Cortex-A9@800MHz
  • 1, 2, 4 cores

Memory

  • DDR3@1066MTs
  • 256MB up to 2GB

Video Interfaces

  • HDMI, LVDS

Mass Storage

  • EMMC

Networking

  • 1x 1Gb Ethernet

USB

  • 1x OTG
  • 5x USB2

PCIe

  • 1

Audio

  • I2S i/f

Power Supply

  • single 5V

Operating System

  • Linux
  • Android

Development System

  • Debian
  • Yocto

Operating Temperature

  • -40° up to 85°

Dimensions

  • 70 x 40 mm

Product availability

  • 2035

Hardware manual

Software manual

Errata

PCN

Fact Sheet

OS Images

  • This content is available for authorized users only. Please login.
